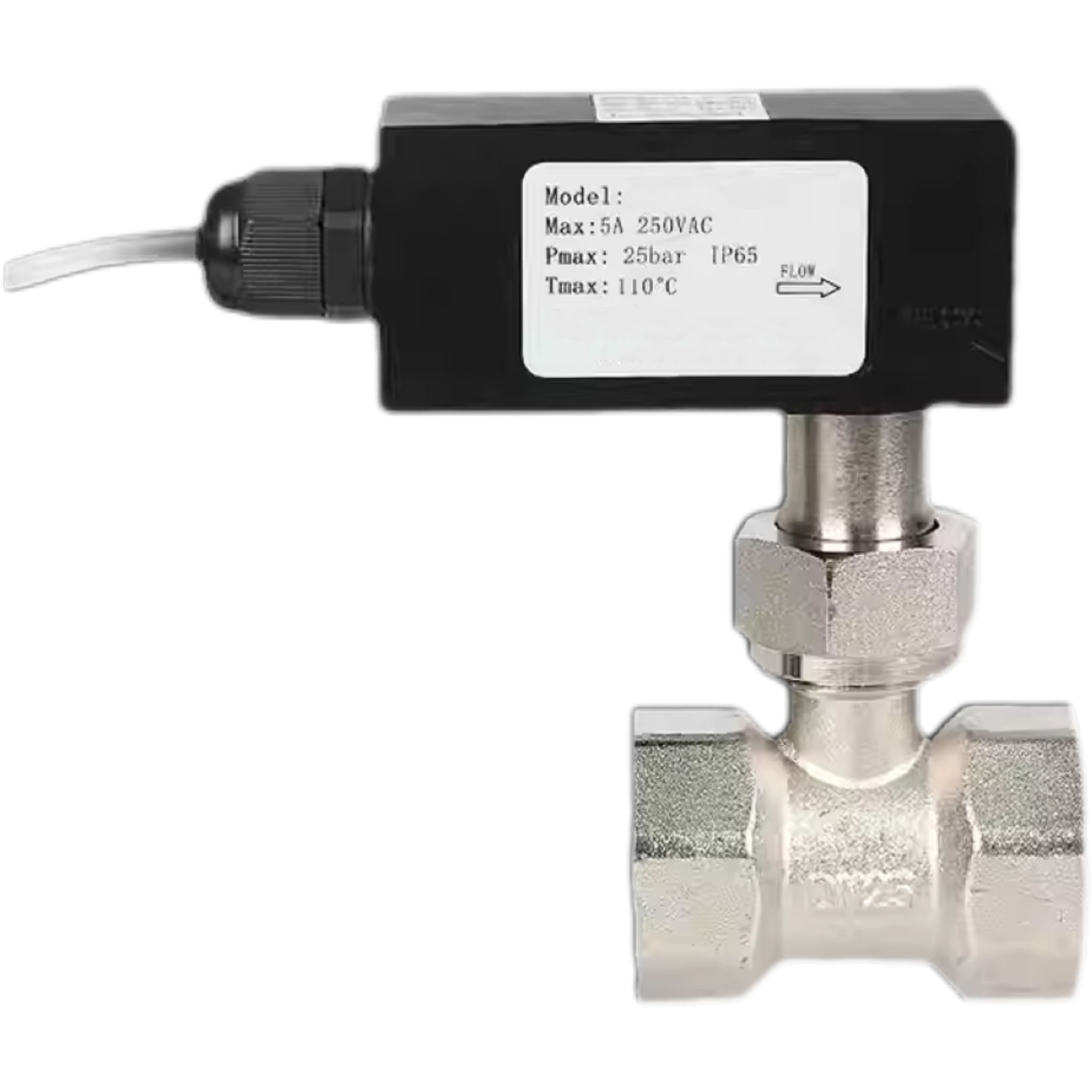

Baffle Paddle Flow Switch

Overview of Baffle Paddle Flow Switch

The Baffle Paddle Flow Switch is a mechanical flow switch designed by ZINACA Instruments’ flow technology experts to overcome the limitations of traditional paddle-type flow switches. It features a built-in microswitch for accurate and stable flow detection and offers enhanced reliability and minimal pressure loss. Widely used in industrial automation, HVAC, refrigeration, machinery, and compressed air systems, it ensures dependable flow monitoring even in contaminated fluids.

Features of Baffle Paddle Flow Switch

• Innovative baffle paddle design: Overcomes limitations of traditional paddle switches, providing higher reliability

• Mechanical flow switch with built-in microswitch: Accurate and stable flow detection

• Minimal pressure loss: Excellent repeatability and strong resistance to contamination

• Safe isolation of mechanical and electrical components: Enhanced durability

• No bellows or failure-prone parts: Prevents condensation and corrosion

• Multiple variants available: Suitable for various applications

• High-capacity imported microswitches: Avoids common failures of magnetic switches

• Enclosure protection: IP65

• Operating temperature: -20…90℃

• Pressure rating: 25 bar (customizable for higher pressures)

• Voltage & output: Max 250 V, SPDT micro switch, 2-wire or 3-wire output, optional status indicator

• Materials: Wetted housing: nickel-plated brass; paddle: stainless steel; electrical enclosure: ABS

Applications of Baffle Paddle Flow Switch

• Monitoring gas and liquid flow in industrial automation, machinery, HVAC, refrigeration, and compressed air systems

• Central air conditioning systems

• Water-cooled welding machines, laser equipment cooling systems, vacuum coating machines, electric furnaces, and polysilicon ingot casting furnaces

• Wastewater systems where magnetic components are protected from direct contact with fluids

• General industrial fluid control applications requiring reliable on/off flow detection

Price of Baffle Paddle Flow Switch

The price of a Baffle Paddle Flow Switch may vary depending on specific parameters, materials, and configuration requirements.
If you would like to know the latest price of ZINACA Instruments’ Baffle Paddle Flow Switch, please contact us for a detailed quotation.

Baffle Paddle Flow Switch OEM Service

ZINACA Instruments is a professional industrial instrument manufacturer specializing in flow, pressure, temperature, and level measurement devices.
We provide customized OEM solutions for Baffle Paddle Flow Switches according to your specific requirements and operating conditions.
If you are seeking Baffle Paddle Flow Switch OEM services, please contact ZINACA Instruments.

Baffle Paddle Flow Switch Manufacturer

ZINACA Instruments is a trusted Baffle Paddle Flow Switch manufacturer, certified with ISO 9001, CNAS, IAF, SIL, and ACM, ensuring high-quality and reliable products for industrial applications.
Our switches deliver safe and stable operation across HVAC, refrigeration, industrial automation, machinery, and fluid control systems.

Technical Specifications
