Clamp-type Sanitary Pressure Transmitter

Pressure Transmitter

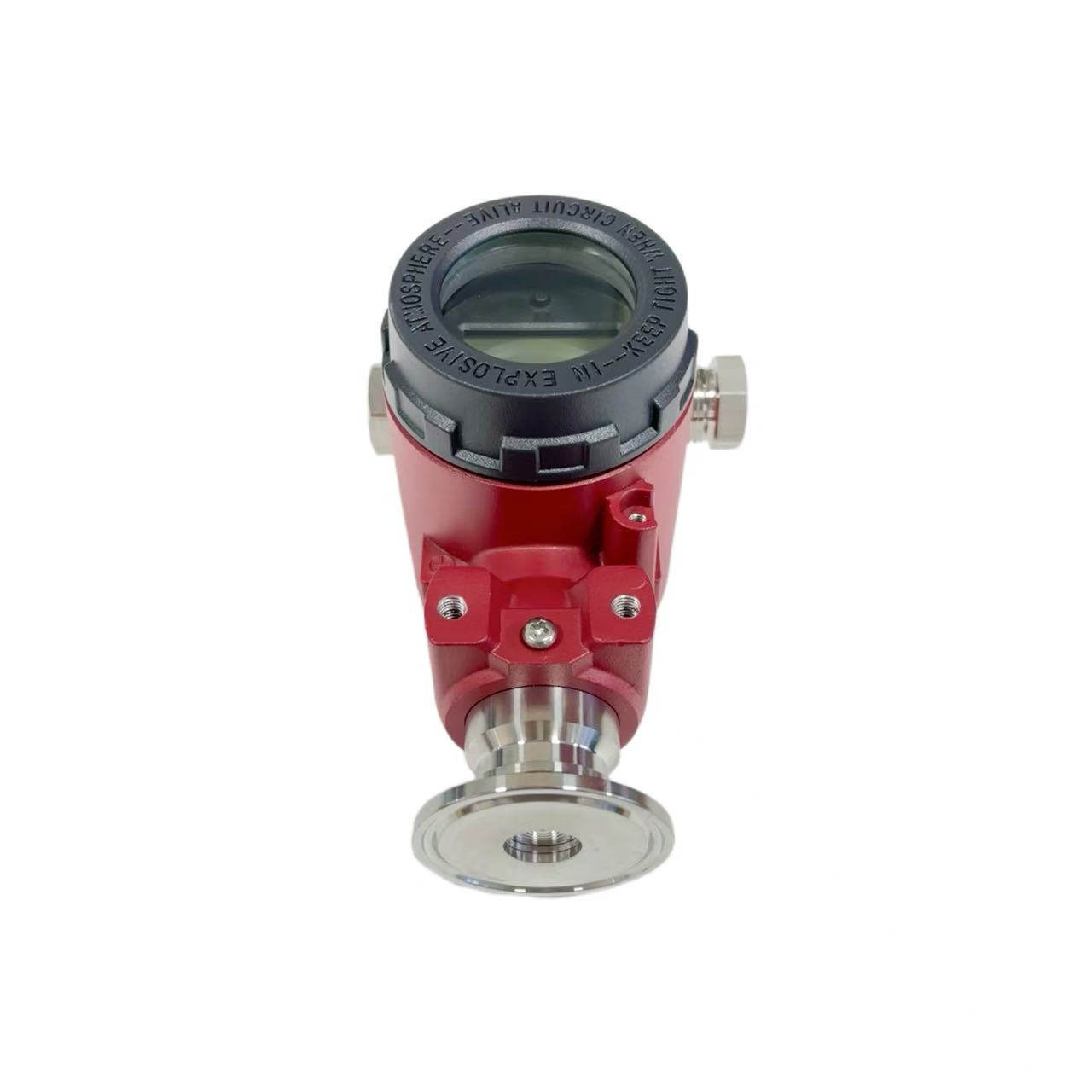

Tri-Clamp Sanitary Pressure Transmitter

MODEL: ZNC-PT-TC

The clamp-type sanitary pressure transmitter is designed for hygienic applications in the food, beverage, dairy, pharmaceutical, and bioprocess industries. It features a stainless-steel clamp connection with a polished wetted surface, ensuring full compliance with sanitary standards and allowing easy CIP/SIP cleaning and sterilization without contaminating the process medium.

Equipped with a high-stability pressure sensing element and advanced digital compensation circuitry, the transmitter delivers accurate output, excellent long-term stability, and reliable performance. Its compact structure and easy installation make it compatible with various clamp sizes to meet different pipeline and equipment requirements.

This transmitter is suitable for measuring the pressure of liquids, pastes, and gases, and can be used for tank level monitoring, process pressure control, fermentation systems, and other sanitary-grade applications.

Description

Overview of Tri-Clamp Sanitary Pressure Transmitter

Our Sanitary Transmitter (hereinafter referred to as the product) is a pressure measuring instrument specifically designed to meet the high cleanliness standards of industrial applications.

What is our Sanitary Transmitter, and what are its main application fields?

Product Definition: The product is a high-precision pressure/level transmitter utilizing a flush diaphragm design and a Tri-Clamp (sanitary clamp) quick-connect process connection. It seamlessly integrates the sensing element with the process media, ensuring accurate, stable, and hygienic pressure measurement.
Main Application Fields:

Food and Beverage: Pressure and tank level measurement for fluids like milk, beer, juice, and syrup.
Biopharmaceuticals: Pressure monitoring in fermentation tanks, reactors, filtration systems, and purified water loops.
Fine Chemicals: Any application requiring frequent cleaning and having special demands for corrosive or easily crystallizing media.

What are its key features?

The core features of Our Sanitary Transmitter are its focus on hygiene, ease of cleaning, and high reliability:

Hygienic Design: The flush diaphragm eliminates measurement dead zones and prevents media buildup, thus guaranteeing zero residue.
Quick Connection: Uses standard Tri-Clamp connections for rapid mounting and dismounting, greatly facilitating Clean-In-Place (CIP) and Sterilization-In-Place (SIP) procedures.
High Stability: Employs high-performance sensors to ensure long-term measurement stability and accuracy.

Features of Our Sanitary Transmitter

Summary of product selling points:

Superior Hygienic Compatibility: Flush diaphragm design with no sanitary dead corners; perfectly compatible with CIP/SIP cleaning and sterilization processes.
Extremely Fast Maintenance & Installation: International standard Tri-Clamp connection for quick installation/removal, reducing downtime.
Robust Industrial Protection: Full stainless steel housing (optional Ex-proof structure), up to IP67 protection rating, resistant to condensation and moisture.
High Accuracy and Stability: Utilizes high-quality diffused silicon or monocrystalline silicon sensors, offering high precision (e.g., 0.1% FS) and ensuring long-term operational stability.
Wide Media Compatibility: Process connection and diaphragm materials (e.g., 316L Stainless Steel) suitable for various corrosive fluids.

Applications of Our Sanitary Transmitter

Description of product applications.

Our Sanitary Transmitter is a critical component for achieving process control automation and compliance:

Bioreactors and Fermenters: Precisely monitor pressure changes during the cultivation process to ensure biological activity and product quality.
Filtration and Separation Systems: Measure the differential pressure across filter elements to detect clogging (differential pressure models available upon request).
Homogenizer and Pump Outlets: Monitor transient pressures of high-pressure, high-velocity fluids to ensure equipment safety.
Storage Tank and Silo Level: Accurately calculate the depth and quantity of liquids or slurries by measuring the hydrostatic pressure at the vessel bottom.
Pipeline Pressure Monitoring: Used to monitor fluid pressure within pipelines, optimizing pumping efficiency and flow rate.

Price of Our Sanitary Transmitter

The price of the product will vary based on specific parameters such as measuring range, accuracy class, explosion-proof requirements, display options, and special material choices. If you wish to inquire about the latest pricing for our Sanitary Transmitter, please feel free to contact us for a current quotation.

Our Sanitary Transmitter OEM Service

ZINACA Instrument is a professional industrial automation instrumentation equipment manufacturer.

We specialize in providing highly reliable and high-performance solutions for pressure, flow, and temperature measurement. We operate with a comprehensive production and quality control system that enables us to customize reliable, high-standard pressure measurement products based on your specific requirements and working conditions. If you are seeking OEM/ODM services for our Sanitary Transmitter, including customized range, special output signals, private labeling, or specific process connections, please contact our professional team. We are ready to offer flexible and cost-effective collaboration proposals.
