Submersible Level Transmitter

Level Meter

The Submersible Level Transmitter features high-performance isolated pressure sensors, temperature compensation, and signal amplification for accurate and reliable liquid level measurement.

Measuring Range:

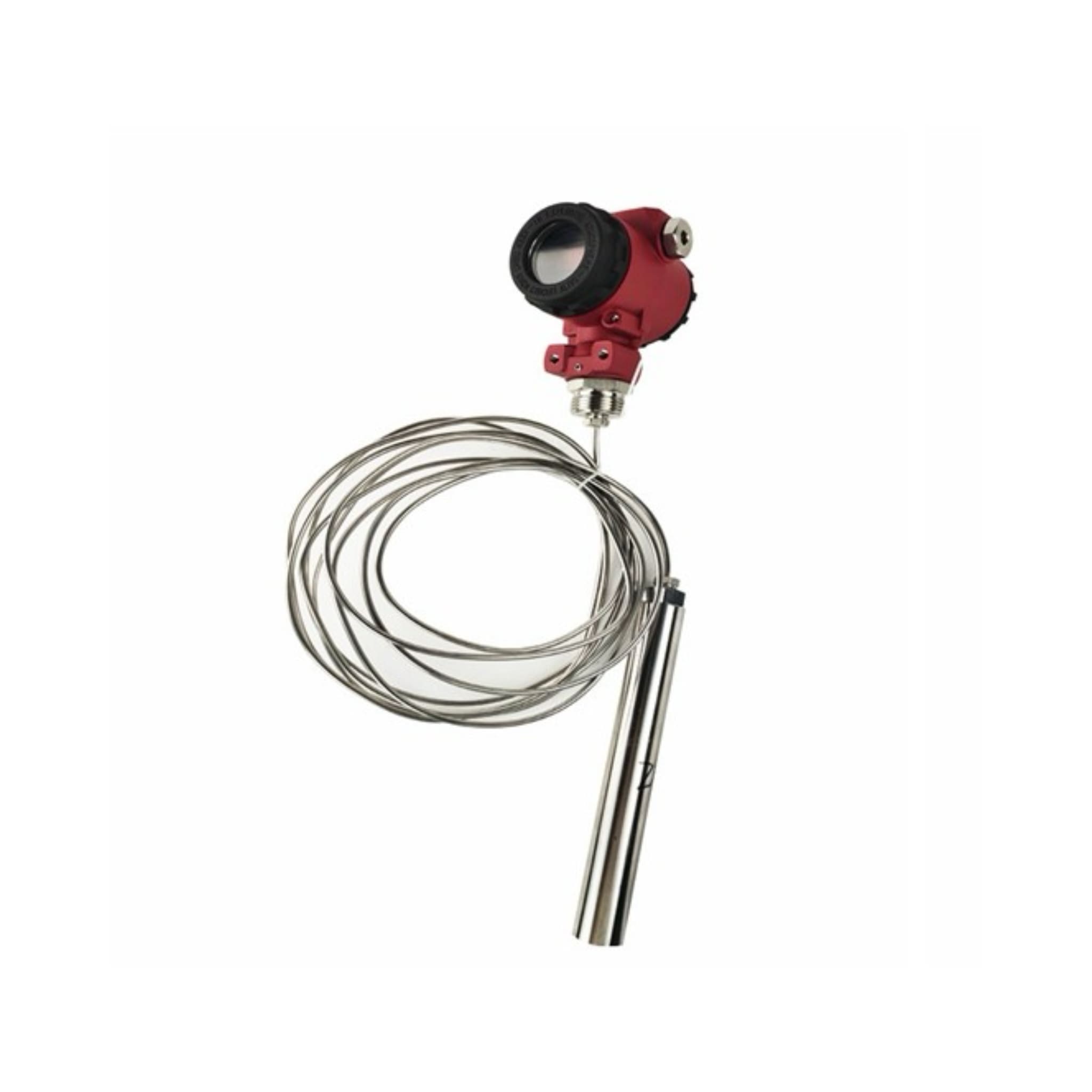

Cable type: 0–0.2 m to 0–500 m (customizable)

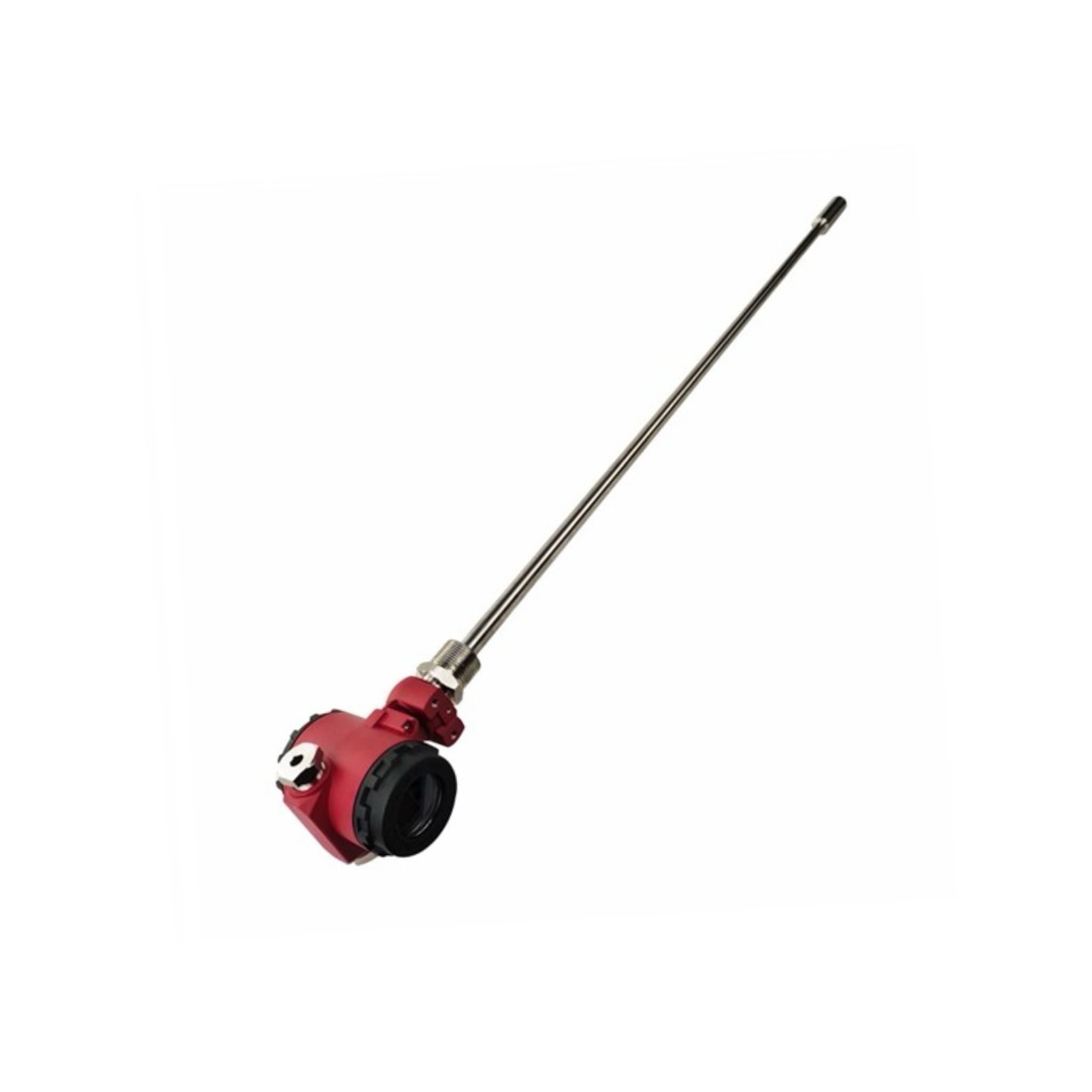

Rod type: 0–0.2 m to 0–3 m (other lengths customizable)

Armored cylinder type: 0–0.2 m to 0–500 m (customizable)

Corrosion-resistant type: 0–0.5 m to 0–20 m (customizable)

Accuracy: 0.5% / 0.2%
Protection Class: IP65 / IP68
Power Supply: 24 VDC (15–36 VDC)
Output: 4–20 mA / 0–5 V / 0–10 V / HART / RS485
Operating Temperature: 0℃–80℃

Description

Overview of Submersible Level Transmitter

The Submersible Level Transmitter is a high-performance liquid level measurement device designed for water treatment, petrochemical, power, metallurgy, and pharmaceutical industries. Equipped with isolated pressure sensing elements, temperature compensation, and signal amplification, it delivers accurate, stable, and reliable liquid level monitoring. Optional local digital display allows on-site observation, making it suitable for process control and critical liquid level management.

Features of Submersible Level Transmitter

Wide Applicability – Compatible with various liquid media including water, sewage, oil, and viscous liquids; precise even with foaming or sedimentation.
Solid-State Design – No moving parts, ensuring high reliability and long service life.
Flexible Installation – Supports flanges or multi-purpose brackets for versatile mounting.
Anti-Interference & Protection – Designed with anti-electromagnetic/radio-frequency interference, lightning protection, reverse polarity protection, and overload current limiting.
Durable Materials – Resistant to fatigue, wear, vibration, shock, and overload, suitable for demanding industrial environments.
Optional On-Site Display – Provides intuitive and convenient liquid level observation.
Accurate & Stable Output – Standard outputs include 4-20 mA, 0-5V, 0-10V, HART, RS485 for direct connection to A/D systems.

Applications of Submersible Level Transmitter

Sewage Treatment Plants – Monitoring liquid levels in sewage pools or tanks.
Water Towers and Cisterns – Accurate level detection in high-rise and storage tanks.
Industrial Liquids – Measurement of conductive liquids such as water, oil, and other process fluids.
General Liquid Level Monitoring – Maintenance-free and reliable level measurement for medium or low-temperature liquids.

Price of Submersible Level Transmitter

The price depends on measuring range, output type, materials, and optional display.
For the latest quotation suitable for your application, please contact ZINACA Instruments to receive a tailored offer.
