Gas Boiler Furnace

Gas Boiler Furnace

Gas boilers are widely used in industrial and commercial applications for steam generation, heating, and hot water supply. Maintaining precise combustion control is critical to ensure efficiency, safety, and longevity of the system. Furnace temperature measurement plays a vital role in monitoring combustion quality, controlling fuel-air ratio, and preventing overheating or flame instability.

ZINACA Instruments provides specialized thermocouples designed for high-accuracy furnace temperature measurement in gas boilers. These devices feature dual-chamber isolation, high-purity alumina protective tubes, and stable 4–20mA output, providing robust performance in high-temperature environments. They deliver real-time data to combustion controllers, ensuring safe operation and optimizing energy efficiency.

What Is a Gas Boiler Furnace?

Understanding Gas Boiler Furnace Systems

A gas boiler furnace is the chamber where fuel combustion occurs, generating heat that is transferred to water or steam. The furnace typically involves:

•  Burner assemblies supplying natural gas or LPG

•  Air supply systems to ensure proper combustion

•  Heat exchange surfaces for water or steam

•  Exhaust and flue gas management systems

 Characteristics of Gas Boiler Furnace Operation

Industrial gas boiler furnaces are characterized by:

•  High operating temperatures, often exceeding 1000°C in flame zones

•  Dynamic fuel-air conditions, requiring precise monitoring

•  Continuous operation, which can span thousands of hours annually

•  Safety-critical environment, where overheating can damage the boiler or create hazards

 Applications Across Industries

Gas boilers with furnace monitoring are used in:

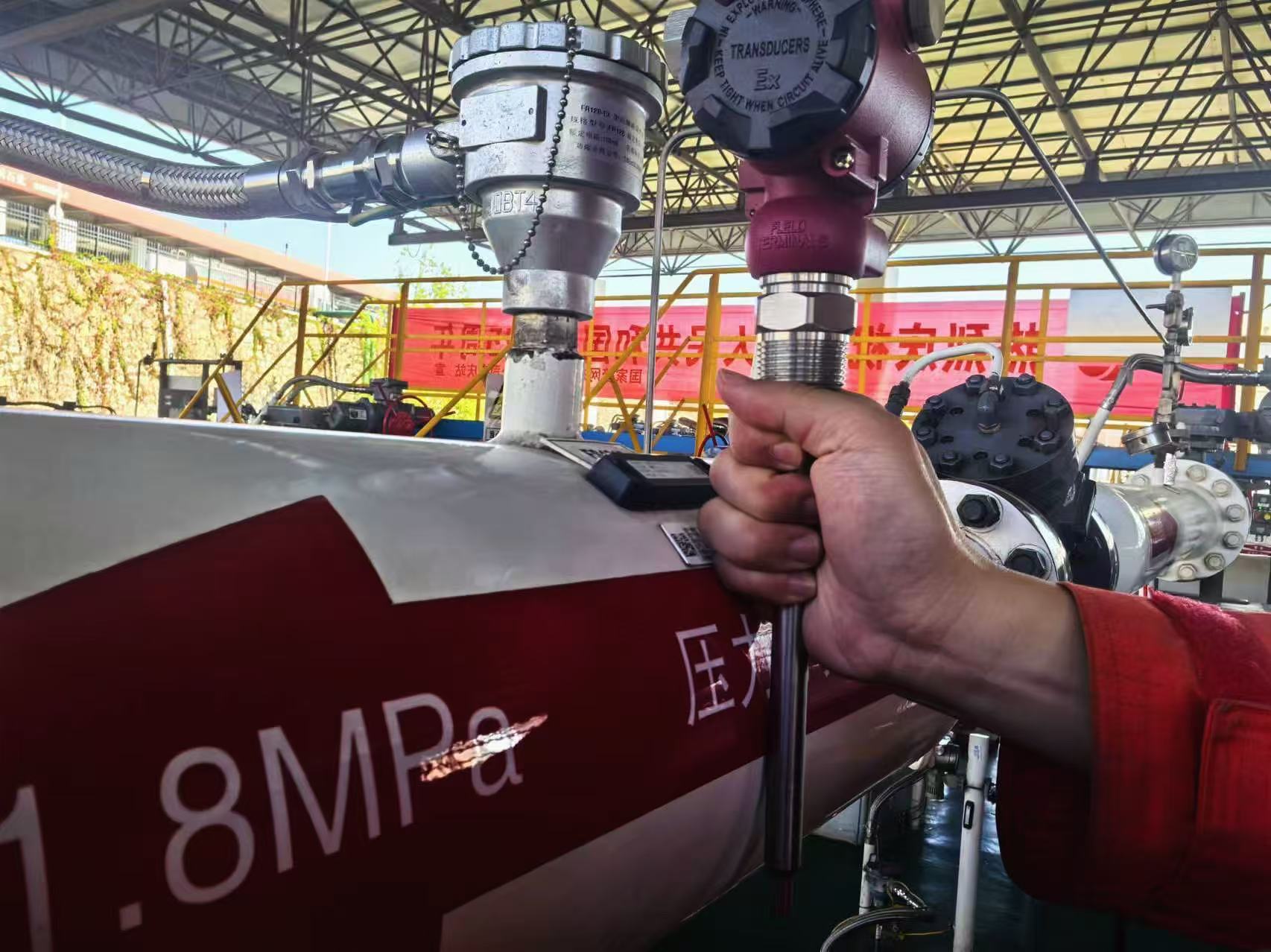

•  Power generation plants

•  Food and beverage processing

•  Chemical manufacturing

•  Textile and paper mills

•  District heating systems

•  Commercial buildings

•  Pharmaceutical manufacturing

Accurate furnace temperature measurement is essential for optimizing fuel consumption, reducing emissions, and ensuring safe boiler operation.

How ZINACA Thermocouples Apply in Gas Boiler Furnaces

Real-Time Temperature Monitoring

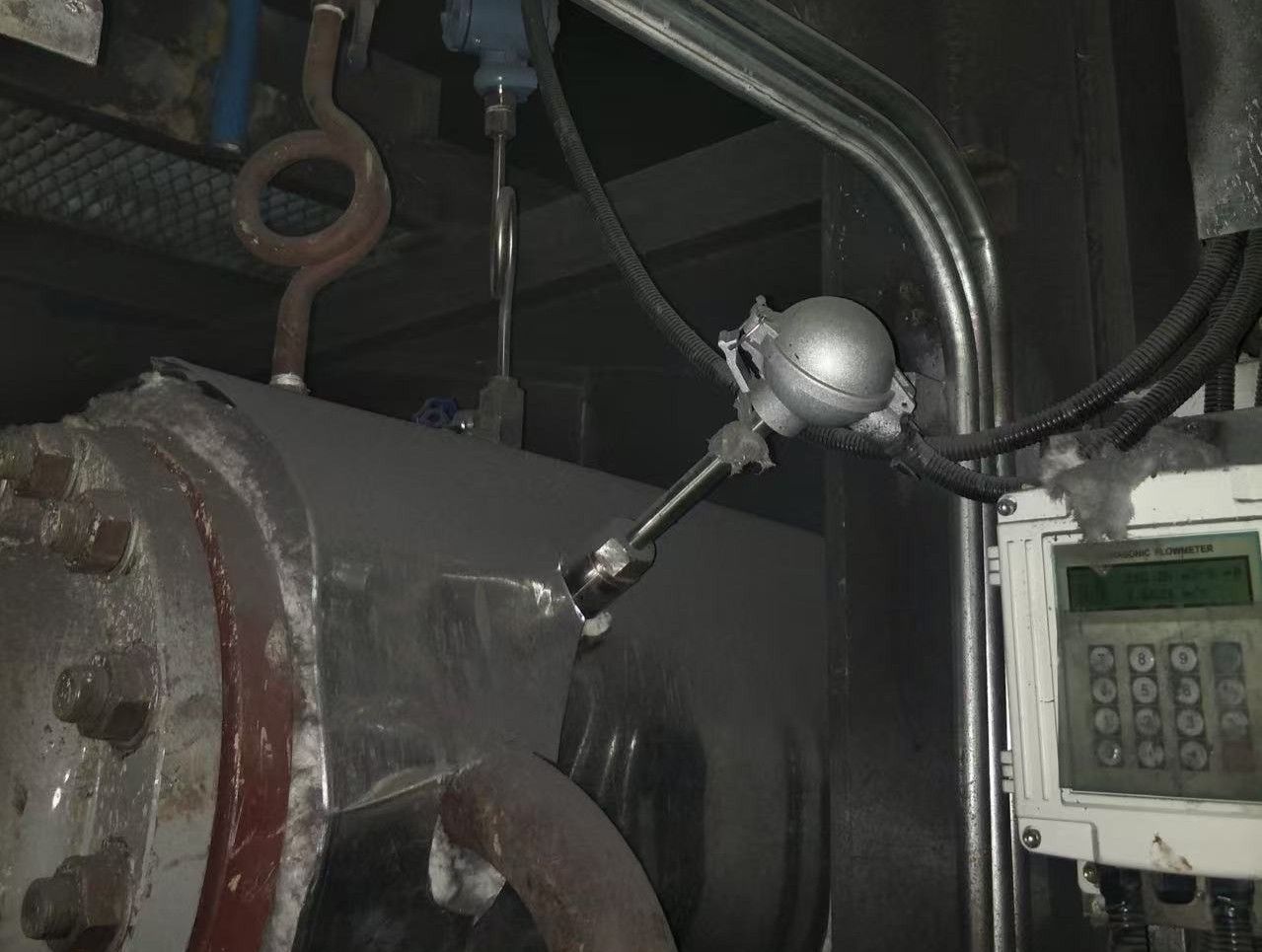

ZINACA thermocouples provide accurate real-time temperature measurement directly in the furnace. By placing thermocouple probes in critical zones, the combustion control system receives precise temperature data to adjust fuel and air supply.

Key Features:

1. Dual-Chamber Isolation – The junction box and protective tube are separated into two chambers, preventing condensation and ensuring reliable signal transmission.

2. High-Purity Alumina Protective Tube – The tube offers excellent gas-tightness, preventing furnace water vapor from penetrating the internal thermocouple and ensuring long-term stability.

3. Mature Technology and High Accuracy – The design ensures stable long-term performance and measurement precision.

4. 4–20mA Analog Output – Compatible with PLCs, burner management systems, and control panels for automated operation.

Burner Flame Control and Safety

Thermocouples detect flame presence and measure furnace temperature, enabling:

•  Automatic burner shut-off in case of flame failure

•  Adjustment of fuel supply to maintain optimal combustion

•  Prevention of overheating and unsafe pressure build-up

High-Temperature Tolerance

ZINACA thermocouples use high-quality materials tailored for different temperature ranges:

•  Type K/N: 0–1200°C

•  Type S: 0–1600°C

The thermocouple sheaths are designed to withstand extreme heat, thermal cycling, and harsh furnace environments.

Integration With Boiler Control Systems

Thermocouples connect to:

•  PLC or DCS systems

•  Burner management systems

•  Digital temperature controllers

•  Alarm and safety shutdown circuits

This integration ensures automatic adjustment of fuel-air ratio, real-time alerts for abnormal temperature, and long-term operational stability.

Flame Detection in Multi-Burner Systems

In large boilers with multiple burners, each burner may require individual flame and temperature monitoring. ZINACA thermocouples provide:

•  Independent measurement for each burner

•  Signal consistency to prevent false alarms

•  Long-term stability under continuous high-temperature operation

How to Choose a Reliable Furnace Thermocouple

 Temperature Range Selection

Select a thermocouple capable of handling the maximum furnace temperature:

 K/N type: 0–1200°C

 S type: 0–1600°C

 Material and Sheath Design

High-temperature furnaces require durable thermocouple materials:

 Type K/N: Nickel-chromium/nickel-aluminum

 Type S: Platinum-rhodium

 Protective high-purity alumina tube ensures gas-tightness and prevents moisture ingress.

 Electrical and Signal Compatibility

Ensure compatibility with the boiler control system:

•  4–20mA analog output for direct integration

•  Standard thermocouple voltage signals (mV output) if needed

•  Signal transmission over long distances using extension wires or transmitters

Installation and Response Time

Fast response is critical for burner control. Consider:

•  Probe insertion length for flame exposure

•  Protective sheath mounting for thermal and mechanical durability

•  Thermal mass to balance durability and response speed

Maintenance and Durability

Reliable thermocouples should:

•  Resist thermal shock

•  Maintain accuracy over long-term exposure

•  It is easy to replace or recalibrate without requiring a boiler shutdown

ZINACA thermocouples meet these requirements, providing stable, precise measurements under demanding furnace conditions.

About ZINACA Instruments

 Specialization in Industrial Measurement

ZINACA Instruments designs and manufactures precision measurement devices, including:

•  Furnace thermocouples with dual-chamber isolation and alumina tubes

•  Pressure switches and transmitters

•  Flow meters and flow switches

•  Temperature controllers and sensors

•  Level measurement devices

 Global Certification and Quality Assurance

ZINACA products comply with ISO, CNAS, IAF, SIL, and ACM certifications, ensuring reliability and safety for industrial operations.

 Customization and OEM Services

For gas boiler manufacturers and integrators, ZINACA offers:

•  Customized probe lengths and thermocouple types

•  High-temperature sheathing for furnace conditions

•  Electrical interface tailored to control systems

•  OEM branding and configuration options

 Commitment to Safety and Accuracy

ZINACA thermocouples provide:

•  Accurate real-time furnace temperature measurement

•  Reliable flame detection

•  Long-term operational stability

•  Optimized boiler efficiency and safety

With decades of industrial instrumentation expertise, ZINACA Instruments ensures that every furnace thermocouple delivers high-quality performance in demanding gas boiler applications.
