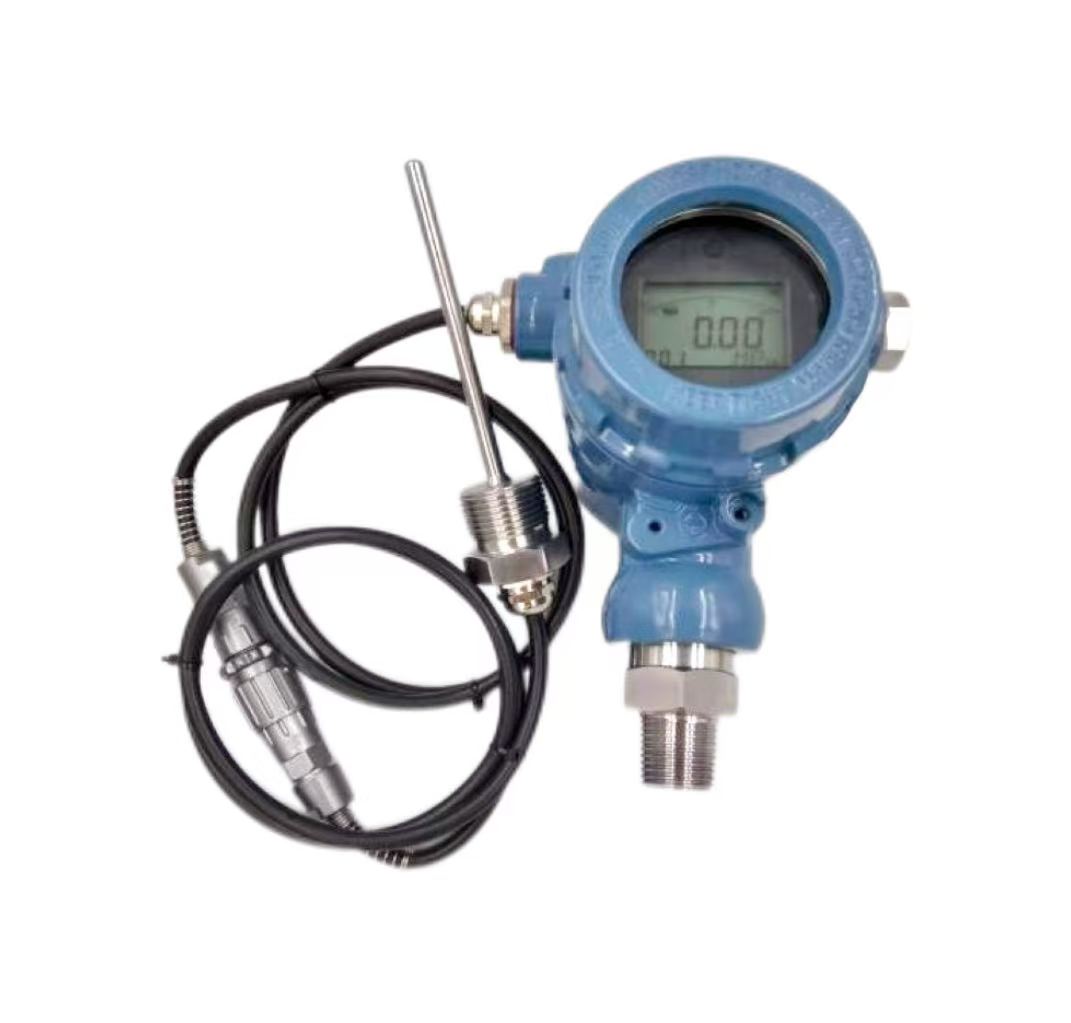

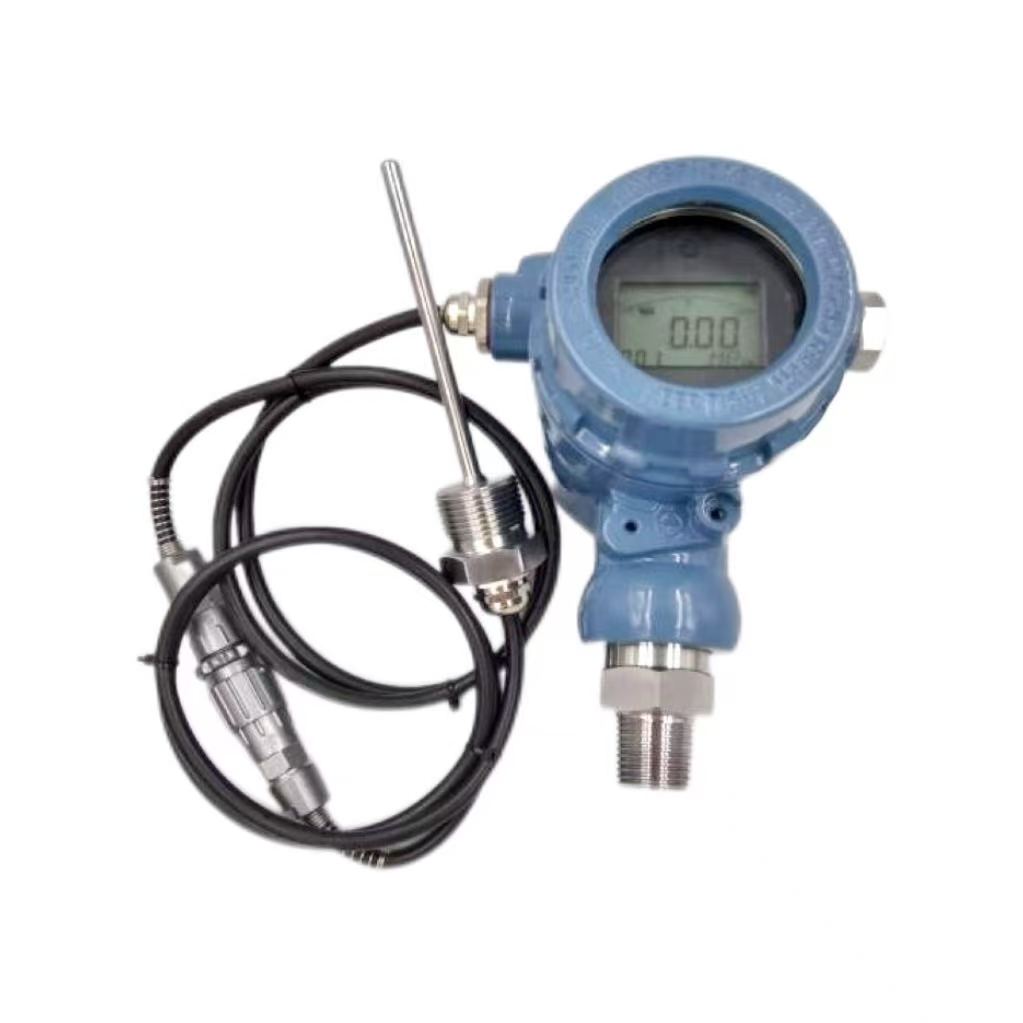

Integrated Pressure and Temperature Transmitter

MODEL: ZNC-PT-T

Measured Variables: Pressure and temperature
Applicable Media: Liquid or gas
Pressure Range: 0–6 MPa
Temperature Range: −50°C to +150°C
Pressure Accuracy: Class 0.5
Temperature Accuracy: Class 0.5

Description

Overview

The ZNC-PT-T combines pressure and temperature measurement in one instrument. Featuring a local LCD display and RS485 Modbus communication, it provides reliable process monitoring and easy integration with PLC, DCS and remote data acquisition systems.

Features

Simultaneous pressure and temperature measurement
Pressure range: 0–6 MPa
Temperature range: −50 to +150°C
Class 0.5 pressure and temperature accuracy
RS485 Modbus RTU communication
Local LCD display
24 VDC power supply
IP65 enclosure protection
M20 × 1.5 or 1/2" NPT process connection

Applications

Suitable for pressure and temperature monitoring in:
Oil and water wells
Industrial pipelines
Storage and transportation systems
Pumping and process equipment
Remote monitoring and automation systems

OEM

OEM and customized versions are available, including:
Measuring ranges
Probe length and diameter
Process connections
Cable length
Communication settings
Nameplate and customer branding

We can support prototype production, small-batch orders, project quantities, and long-term OEM cooperation.

Contact ZINACA with your application requirements, drawings, or technical specifications for product selection and quotation.

Technical Specifications

Model	ZNC-PT-T	Measured Variables	Pressure and temperature
Medium	Liquid or gas	Power Supply	24 VDC
Pressure Range	0–6 MPa	Temperature Range	−50 to +150 °C
Pressure Accuracy	Class 0.5	Temperature Accuracy	Class 0.5
Pressure Nonlinearity	0.25% F.S.	Pressure Repeatability	0.15% F.S.
Overload Capacity	150% F.S.	Output	RS485 (Modbus RTU)
Process Connection	M20 × 1.5 or 1/2" NPT	Enclosure Protection	IP65
Explosion Protection	Flameproof / Intrinsically Safe	Ambient Temperature	−40 to +70 °C
Ambient Humidity	≤97% RH	Net Weight	Approx. 950 g
