Monitoring the Heartbeat of Industrial Filtration: The Vital Role of Differential Pressure Transmitters in Baghouse Dust Collectors
Industry Background: The Challenge of Industrial Dust Control and the Drive Toward Intelligent Emission Standards
In the contemporary industrial framework environmental stewardship has transitioned from a secondary concern to a critical operational red line With the global push toward carbon neutrality and the implementation of stringent ultra low emission standards the management of atmospheric pollutants is a top priority for energy intensive sectors such as power generation steel smelting cement production metallurgy and fine chemicals Within these industries the Industrial Baghouse Dust Collector often referred to as a fabric filter or baghouse stands as the most prevalent and effective technology for removing particulate matter from industrial flue gases These systems operate by passing dust laden gas through fabric filter bags the dust is trapped on the surface of the fiber while the cleaned air passes through and is exhausted However the operation of a baghouse is not a static event but a highly dynamic fluid physical process that requires constant oversight
As the filtration process continues the layer of dust on the filter bags known as the dust cake gradually thickens leading to a steady increase in the operational resistance of the collector If this resistance is allowed to climb too high it results in a sharp increase in the power consumption of the induced draft fan and in extreme cases it can lead to filter bag rupture or a significant drop in overall collection efficiency Conversely an abnormally low resistance may indicate that bags have been bypasses torn or have fallen off leading to illegal emissions of particulate matter Therefore the ability to accurately and in real time monitor the pressure changes within the dust collector has become the core metric for assessing the health of the entire system In this context the Differential Pressure Transmitter acts as the eyes of the baghouse It is no longer just a passive measurement tool it is the essential trigger for automated cleaning cycles and a vital data source for energy management and predictive maintenance As Industry 4 0 matures dust collection systems are migrating from experience based manual management to data driven precision controlled operations placing unprecedented demands on the stability and intelligence of differential pressure sensing technology
Technical Application ZINACA Instruments DP Transmitters in the Heart of Baghouse Operations

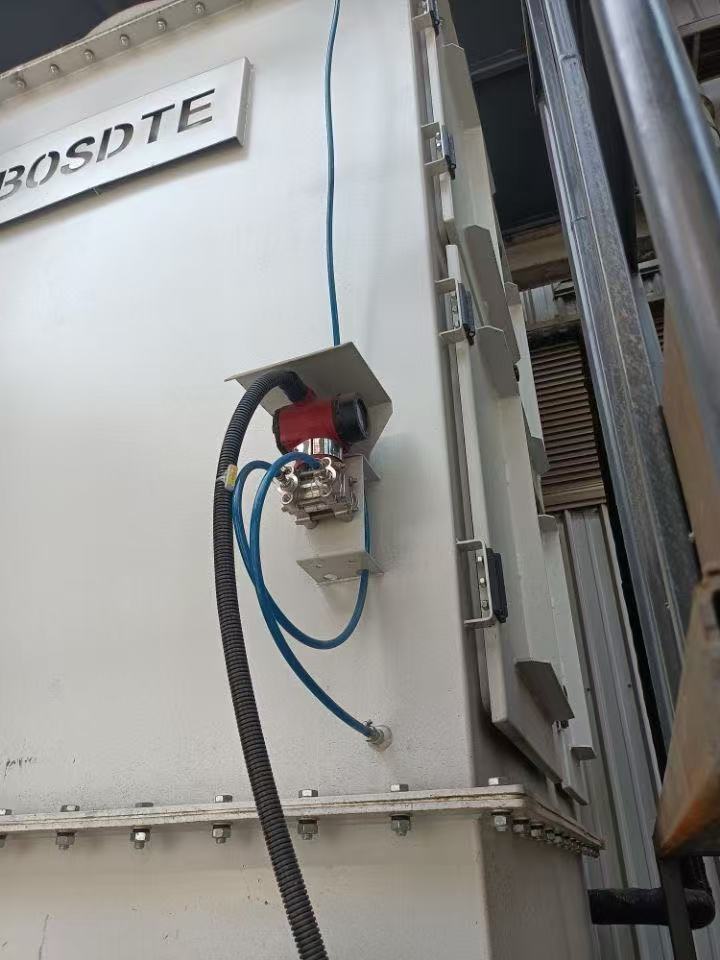

ZINACA Instruments has developed a series of differential pressure transmitters specifically engineered for the harsh environments of industrial environmental protection In a baghouse system these transmitters serve a dual role of monitoring and control The core principle of the application involves measuring the pressure difference between the clean air plenum the outlet side and the filtering chamber the inlet side By connecting the high pressure port of the ZINACA transmitter to the inlet duct or filtering chamber and the low pressure port to the outlet duct or clean air plenum the transmitter captures the minute pressure changes caused by dust accumulation It then converts these physical changes into a standard 4 20mA analog signal or a digital signal such as HART or RS485 for transmission to the central control system such as a PLC or DCS
In practical operation our differential pressure transmitters are primarily utilized in three critical areas The first is Intelligent Pulse Jet Cleaning Control Traditional baghouses often use timed cleaning cycles which can lead to excessive use of compressed air energy waste or insufficient cleaning if the dust load changes By implementing a ZINACA DP transmitter the system can operate in a pressure demand mode When the differential pressure reaches a high threshold for example 1200Pa to 1500Pa the PLC automatically triggers the pulse jet valves to clean the bags Once the pressure drops to a safe baseline for example 600Pa to 800Pa the cleaning stops This dynamic control based on actual resistance significantly reduces compressed air consumption and extends the physical lifespan of the filter bags by preventing over cleaning
The second area is System Health Diagnostics and Safety Alarms By analyzing the data curves provided by the transmitter maintenance personnel can intuitively judge the state of the collector A sudden sharp rise in differential pressure usually indicates bag blinding or a failure in the pulse jet system On the other hand a sudden drop in pressure is a classic sign of a ruptured bag or a seal failure The high response frequency of ZINACA transmitters ensures these fluctuations are caught instantly Finally there is the aspect of Fan Energy Optimization The induced draft fans in large dust collection systems are massive energy consumers By using the feedback from the differential pressure transmitter the fan speed can be adjusted in real time By maintaining the system resistance within the most economical range while still meeting the required filtration velocity plants can achieve electricity savings of 15 to 30 percent
Selection Guide: How to Choose a Reliable DP Transmitter for Harsh Dust Collection Environments
The environment surrounding an industrial baghouse is often characterized by high temperatures high dust concentrations humidity and strong mechanical vibrations Selecting a differential pressure transmitter is not a simple matter of matching a pressure range it is a comprehensive evaluation of long term stability and environmental resilience Choosing a reliable product is the difference between a system that runs smoothly for years and one that suffers from frequent downtime and high maintenance costs
Ultimate Zero Point Stability and Anti Drift PerformanceIn baghouse applications we are often measuring relatively small micro pressure signals typically in the range of 0 to 5000Pa Because the ambient temperature at the site can fluctuate wildly often exceeding 60 degrees Celsius near the top of a boiler or furnace in summer standard transmitters are prone to zero drift This drift causes the pulse jet system to trigger falsely or fail to trigger at all A high quality transmitter must feature full scale full temperature range digital compensation ZINACA products utilize advanced silicon piezoresistive sensing technology paired with proprietary temperature compensation algorithms ensuring that the data remains accurate regardless of the external heat thereby preventing system malfunctions
Robust Overpressure Protection and Static Pressure BalanceDuring system startup shutdown or the switching of dampers the piping can experience instantaneous pressure surges far exceeding the normal operating range If a transmitter one way overpressure capability is insufficient the sensing diaphragm will undergo permanent plastic deformation rendering the sensor useless A reliable product must have a robust one way overpressure protection structure Furthermore dust collection systems often operate under a certain baseline static pressure The transmitter must exhibit excellent static pressure performance ensuring that the tiny differential pressure signal remains undistorted even when the overall system pressure is high
Physical Durability and Material CompatibilityIndustrial sites are filled with fine often conductive dust or corrosive flue gases Therefore the transmitter housing must meet at least IP65 and preferably IP67 ingress protection ratings to prevent dust and moisture from penetrating the circuit board The diaphragm material in contact with the gas should be at least 316L stainless steel In specific chemical applications where the flue gas may contain acidic components Hastelloy diaphragms or specialized protective coatings may be required Additionally given the tendency of dust to clog sensing lines a reliable selection should include professional impulse line accessories and sediment traps to ensure the pressure ports remain clear over the long term
Intelligent Communication and Ease of MaintenanceFor modern digital factories transmitters supporting the HART protocol or RS485 are the gold standard This allows engineers to read the device status modify ranges or perform remote zero adjustments from a safe control room significantly reducing manual labor and the need for personnel to climb onto high platforms Moreover a transmitter equipped with a clear backlit LCD display allows on site inspectors to identify the current pressure and output current at a glance providing invaluable immediate feedback during troubleshooting
About Us ZINACA Instruments: A Leading Expert in Industrial Sensing and Environmental Automation
ZINACA Instruments is a technology driven enterprise dedicated to the research development and manufacturing of high performance industrial pressure differential pressure and fluid measurement instruments For years we have been deeply rooted in sectors such as environmental protection power generation metallurgy petrochemicals and fine chemicals We understand that every Pascal of pressure measured in an industrial environment carries the weight of operational safety and energy efficiency We do not just provide measurement hardware we provide deep application based measurement solutions
As an original manufacturer with independent intellectual property rights ZINACA Instruments has established a rigorous quality management system From the micron level screening of our core pressure sensing chips to the electromagnetic interference hardened design of our circuit boards every product undergoes a 72 hour high temperature burn in test and cyclic high low pressure calibration before leaving the factory We ensure that every differential pressure transmitter bearing the ZINACA logo is ready to serve in the most demanding industrial front lines Our R&D team continuously pushes the limits of micro pressure sensing developing fast response algorithms specifically optimized for the dust collection industry allowing our transmitters to detect the rapid flow field changes during pulse jet cleaning cycles with superior sensitivity
In terms of service ZINACA Instruments adheres to the philosophy of Application First Our team of application engineers is not only expert in instrument technology but also deeply knowledgeable about the industrial processes of baghouse dust collectors Whether you are looking to retrofit older equipment for energy savings or seeking high reliability monitoring components for a new large scale filtration system we provide comprehensive consulting from range setting and impulse line accessory selection to communication protocol integration Choosing ZINACA Instruments is not just choosing a series of high precision DP transmitters it is choosing a technical partner who understands the logic of industrial environmental protection and is dedicated to keeping your system running at peak performance We look forward to helping you achieve a cleaner greener and more efficient industrial future through the power of precision measurement
