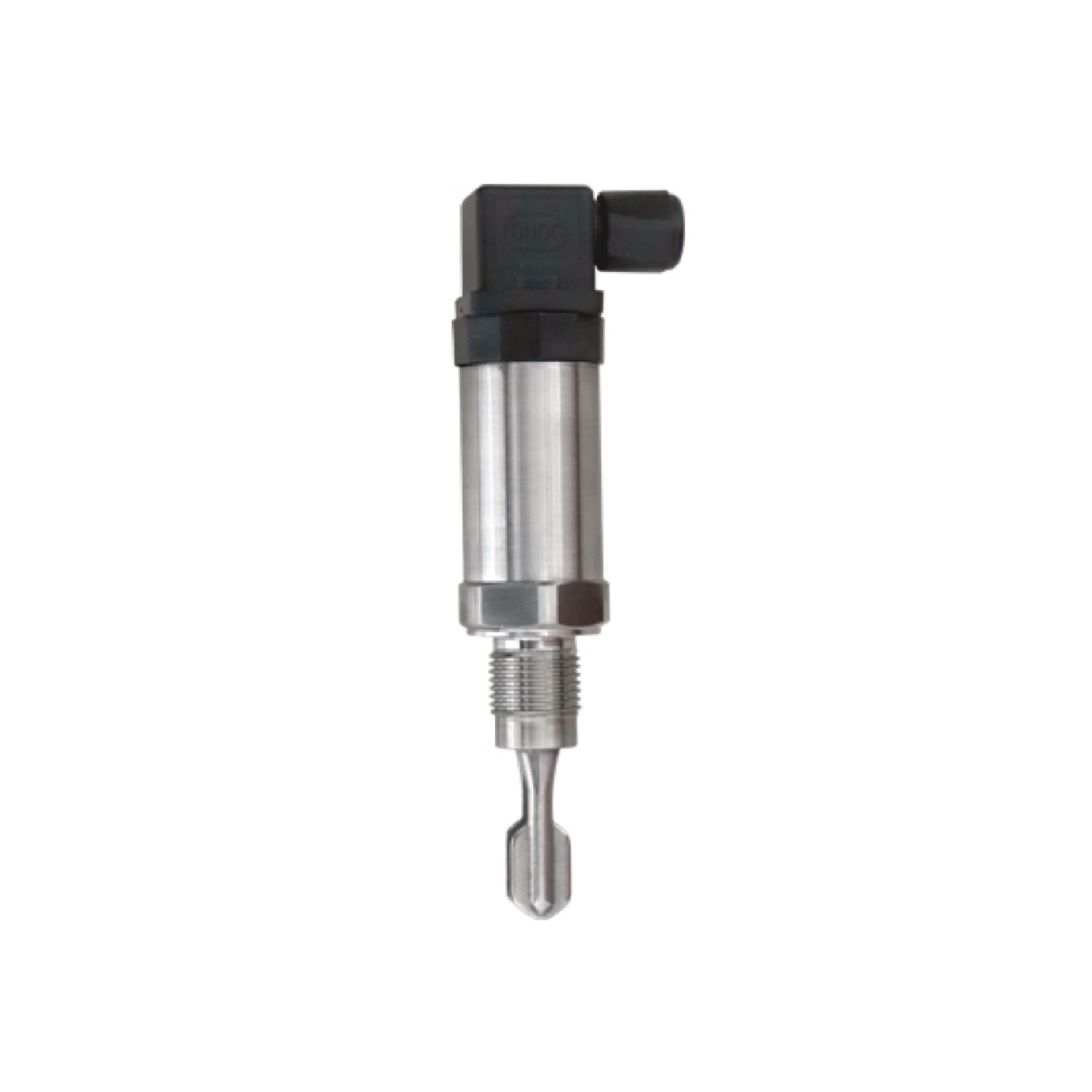

Vibrating Fork Level Switch
The Vibrating Fork Level Switch is a maintenance-free level sensor using a piezoelectric element. It provides precise ON/OFF signals when contacting liquids or solids, with no moving parts for long service life and high reliability. Ideal for turbulent, agitated, or bubbly liquids, widely used in petrochemical, food processing, light industry, and water treatment.
Power Supply Voltage: 20–60 VDC / 20–250 VAC, 50/60Hz
Medium Temperature: -40°C to +150°C
Operating Pressure: -1 to +40 bar
Measured Materials: Powders and granules ≥10 mm, density > 0.1 g/cm³; Liquids, viscosity ≤ 10000 mm²/s, density > 0.7 g/cm³
Housing Material: ABS / Aluminum Alloy
Fork Material: Stainless Steel S304 / S316
Output Type: Relay output (AC250V/4A or DC60V/4A); Open collector NPN max 400 mA; Open collector PNP max 400 mA
Description
Overview of Vibrating Fork Level Switch
The Vibrating Fork Level Switch is an advanced, maintenance-free level sensor that uses a piezoelectric element to generate vibration. When the fork comes into contact with liquids or solids, the vibration frequency changes, and the electronic circuit converts this into an accurate ON/OFF switching signal. With no mechanical moving parts, it offers long service life, high reliability, and maintenance-free operation. It is ideal for turbulent, agitated, or bubbly liquids and is widely applied in petrochemical, food processing, light industry, and water treatment for high/low level alarms and control.
Features of Vibrating Fork Level Switch
Strong Adaptability – Detection unaffected by electrical properties, density, viscosity, turbulence, bubbles, or scaling. Performs reliably under high temperature and pressure.
No Calibration Required – Works accurately across various liquids without on-site calibration.
Maintenance-Free Design – Fully electronic detection with no moving parts ensures long service life and minimal operational costs.
High Sensitivity & Reliability – Precise ON/OFF switching signal triggered by changes in vibration frequency, even in challenging industrial environments.
Compact & Versatile – Simple installation for tanks, silos, pipelines, or vessels, suitable for both liquids and solids.
Flexible Output Options – Relay output up to AC250V/4A or DC60V/4A, and open collector NPN/PNP outputs up to 400 mA.
Wide Operating Range – Works in temperatures from -40°C to +150°C and pressures from -1 to +40 bar.
Applications of Vibrating Fork Level Switch
Petrochemical Industry – Reliable high/low level detection in storage tanks, reactors, and pipelines.
Food & Beverage Processing – Hygienic, maintenance-free level control in liquid and semi-solid materials.
Water & Wastewater Treatment – Accurate monitoring of water, sludge, and other treatment processes.
Light Industry & Manufacturing – Detection in chemical, cosmetic, and pharmaceutical production.
Industrial Processes with Turbulence or Bubbles – Ideal where traditional float switches fail due to agitation, vibration, or frothing.
Price of Vibrating Fork Level Switch
The price of the Vibrating Fork Level Switch varies depending on material, type, and customized specifications.
For the latest quotation suitable for your application, please contact ZINACA Instruments for an updated offer.
Vibrating Fork Level Switch OEM Service
ZINACA Instruments is a professional industrial instrumentation manufacturer, specializing in temperature, pressure, flow, and level measurement devices.
We provide customized OEM services to meet your technical requirements and process conditions, delivering reliable and high-quality Vibrating Fork Level Switch solutions.
If you are looking for Vibrating Fork Level Switch OEM Service, please contact us to discuss your needs.
Vibrating Fork Level Switch Manufacturer
As a leading Vibrating Fork Level Switch Manufacturer, ZINACA Instruments produces level switches with high sensitivity, durable construction, and long service life, ensuring stable and precise level measurement for industrial applications worldwide.
Technical Specifications
| Item | Specification |
|---|---|
| Power Supply Voltage | 20–60 VDC / 20–250 VAC, 50/60Hz |
| Switching Time | Approx. 2 seconds when material is present; approx. 3 seconds when material is absent |
| Ambient Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Medium Temperature | -40°C to +150°C |
| Operating Pressure | -1 to +40 bar |
| Measured Materials | Powders and granules ≥10 mm, density > 0.1 g/cm³ Liquids, viscosity ≤ 10000 mm²/s, density > 0.7 g/cm³ |
| Process Connection | G1-1/2” or G1” |
| Electrical Connection | M12 × P1.0 connector |
| Housing Material | ABS / Aluminum Alloy |
| Fork Material | Stainless Steel S304 / S316 |
| Output Type | Relay output: up to AC250V/4A or DC60V/4A Open collector NPN output, max 400 mA Open collector PNP output, max 400 mA |
| Power Consumption | Max. 3W (DC supply); Max. 15W (AC supply) |
