Level Meter

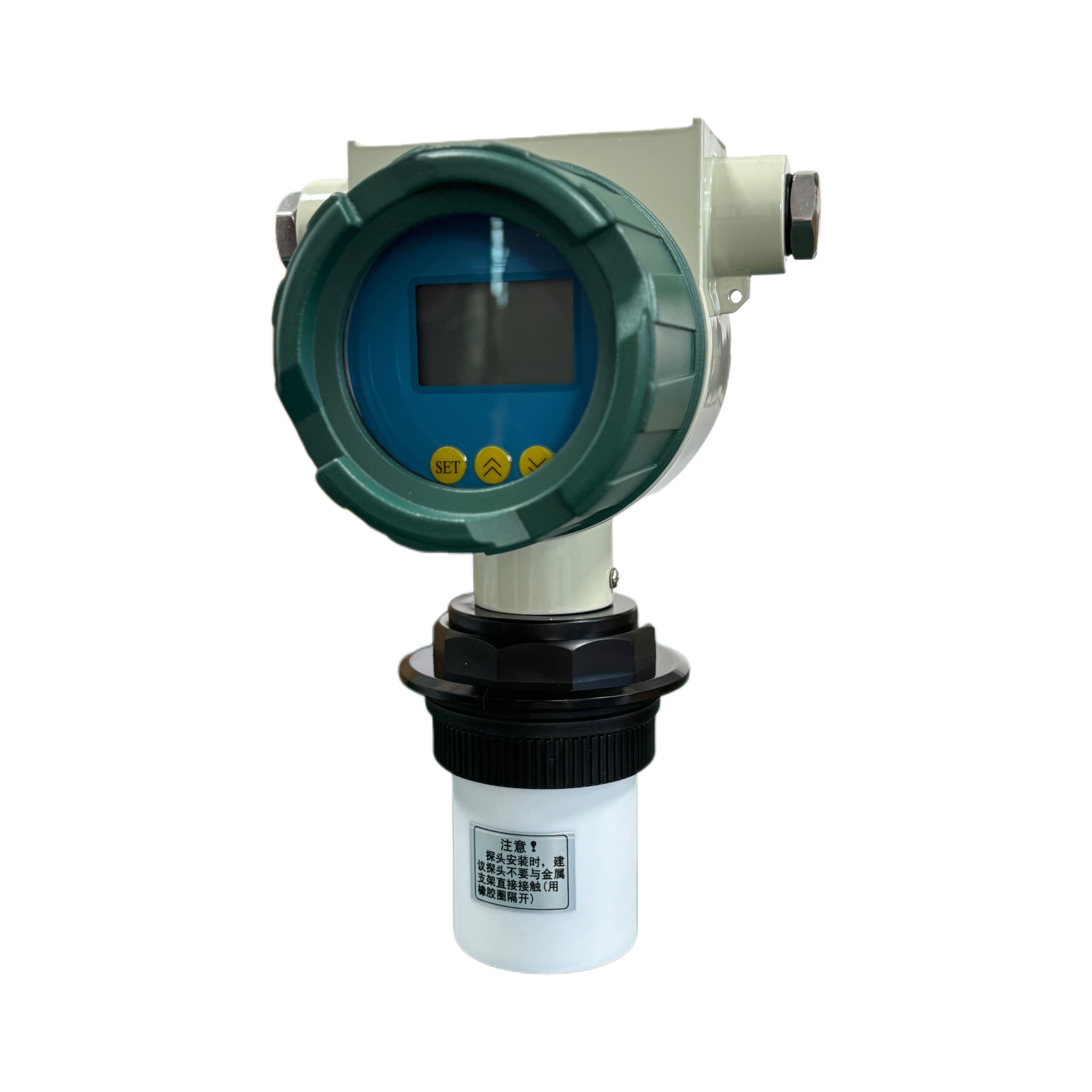

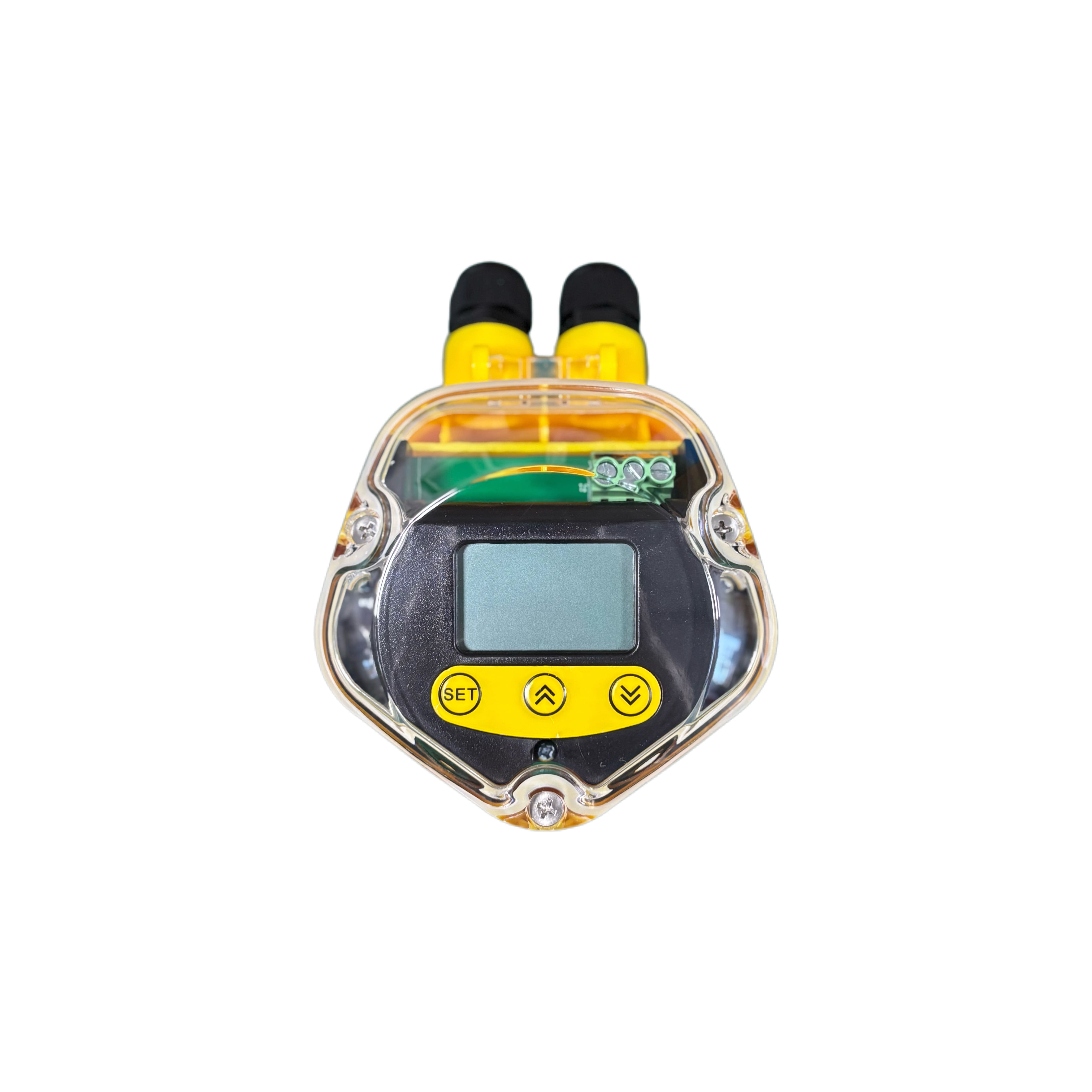

Ultrasonic Level Meter
The Ultrasonic Level Meter is a non-contact, reliable instrument for measuring liquid and solid levels. With advanced ultrasonic technology, it provides accurate, hygienic, and low-maintenance level monitoring for water treatment, chemical, food, and storage applications.
Measuring Range: 5 m, 10 m, 15 m, 20 m, 30 m, 40 m, 50 m, 60 m (integrated type); up to 70 m (separate type)
Measurement Accuracy: 0.5% – 1.0%
Relay Output: Optional 2 groups, AC 250V/8A or DC 30V/5A, state programmable
Power Supply : Standard 24 VDC (integrated), Optional 220 VAC ±15% 50Hz or 12 VDC/battery (separate type)
Ambient Temperature: Display instrument -20°C to +60°C; Probe -20°C to +80°C
Communication: Optional RS485 / RS232 (manufacturer agreement)
IP Grade: Display instrument IP66/IP65; Probe IP68
Probe Cable: Standard 10 m (customizable up to 100 m)
Description
Overview of Ultrasonic Level Meter
The Ultrasonic Level Meter is a non-contact, reliable, and cost-effective instrument for measuring liquid and material levels. It provides accurate monitoring without direct contact with the medium, making it ideal for applications requiring hygienic, safe, and low-maintenance solutions. Designed with advanced ultrasonic technology, it offers stable performance, easy installation, and long service life, and is widely used across industries such as water treatment, chemicals, food, and material storage.
Features of Ultrasonic Level Meter
Non-Contact Measurement – Ensures safety and hygiene by avoiding direct contact with liquids or bulk solids.
Wide Measuring Range – Up to 70m, suitable for most industrial tanks and silos.
High Precision & Resolution – Accuracy within 0.5–1.0% and resolution up to 3mm.
Flexible Output Options – Supports 4–20mA analog output, relay output, and optional RS485/RS232 communication.
Strong Adaptability – Performs reliably under dust, vapor, agitation, and temperature changes.
Customizable Probes – Available for high-pressure, high-temperature, small-diameter, or reduced blind-zone applications.
Durable Design – IP66/IP68 protection for instruments and probes, suitable for harsh environments.
Easy Installation & Commissioning – Simple menu setup; no calibration required for most applications.
Applications of Ultrasonic Level Meter
Water & Wastewater Treatment – Reservoirs, tanks, sewage treatment plants, and pumping stations.
Petrochemical & Chemical Industry – Storage tanks, reaction vessels, and corrosive medium measurement.
Food & Beverage – Hygienic level monitoring of liquids and bulk solids.
Power & Energy – Boilers, cooling towers, and ash silos.
Pharmaceuticals – Precise level control in production tanks and liquid medicines.
Building Materials & Cement – Powder silos, cement bins, and raw material storage.
Agriculture & Grain Storage – Grain silos, feed tanks, and fertilizer storage.
Price of Ultrasonic Level Meter
The price of the Ultrasonic Level Meter varies depending on measuring range, probe type, and customized specifications.
For the latest quotation suitable for your application, please contact ZINACA Instruments for an updated offer.
Ultrasonic Level Meter OEM Service
ZINACA Instruments is a professional industrial instrumentation manufacturer, specializing in temperature, pressure, flow, and level measurement devices.
We provide customized OEM services to meet your technical requirements and process conditions, delivering reliable and high-quality Ultrasonic Level Meter solutions.
If you are looking for Ultrasonic Level Meter OEM Service, please contact us to discuss your needs.
Ultrasonic Level Meter Manufacturer
As a leading Ultrasonic Level Meter Manufacturer, ZINACA Instruments produces instruments with high accuracy, robust design, and long service life, ensuring reliable and precise level measurement across industrial applications worldwide.
Technical Specifications
| Function / Indicator | Integrated Type | Separate Type |
|---|---|---|
| Measuring Range | 5 m, 10 m, 15 m, 20 m, 30 m, 40 m, 50 m, 60 m | 5 m, 10 m, 15 m, 20 m, 30 m, 40 m, 50 m, 60 m, 70 m |
| Measurement Accuracy | 0.5% – 1.0% | 0.5% – 1.0% |
| Resolution | 3 mm or 0.1% (whichever is greater) | 3 mm or 0.1% (whichever is greater) |
| Display | English LCD | English LCD |
| Analog Output | 4-line system: 4–20 mA (≤ 510 Ω) / 2-line system: 4–20 mA (≤ 250 Ω) | 4–20 mA (≤ 510 Ω) |
| Relay Output | Optional 2 groups, AC 250V/8A or DC 30V/5A, state programmable | Single channel: 2 groups; Double channel: 4 groups (optional) AC 250V/8A or DC 30V/5A, state programmable |
| Power Supply | Standard: 24 VDC; Optional: 220 VAC ±15% 50Hz | Standard: 220 VAC ±15% 50Hz; Optional: 24 VDC (120 mA); Customized: 12 VDC or battery |
| Ambient Temperature | Display instrument: -20°C to +60°C Probe: -20°C to +80°C | Display instrument: -20°C to +60°C Probe: -20°C to +80°C |
| Communication | Optional RS485 / RS232 (manufacturer agreement) | Optional RS485 / RS232 (manufacturer agreement) |
| IP Grade | Display instrument: IP66 Probe: IP68 | Display instrument: IP65 Probe: IP68 |
| Probe Cable | None (integrated) | Standard 10 m; up to 100 m available on request |
| Probe Installation | Select type based on measuring range and probe | Select type based on measuring range and probe |
| Remarks | Probes can be customized for high pressure, high temperature, small diameter and reduced blind zone per client requirements. | |
