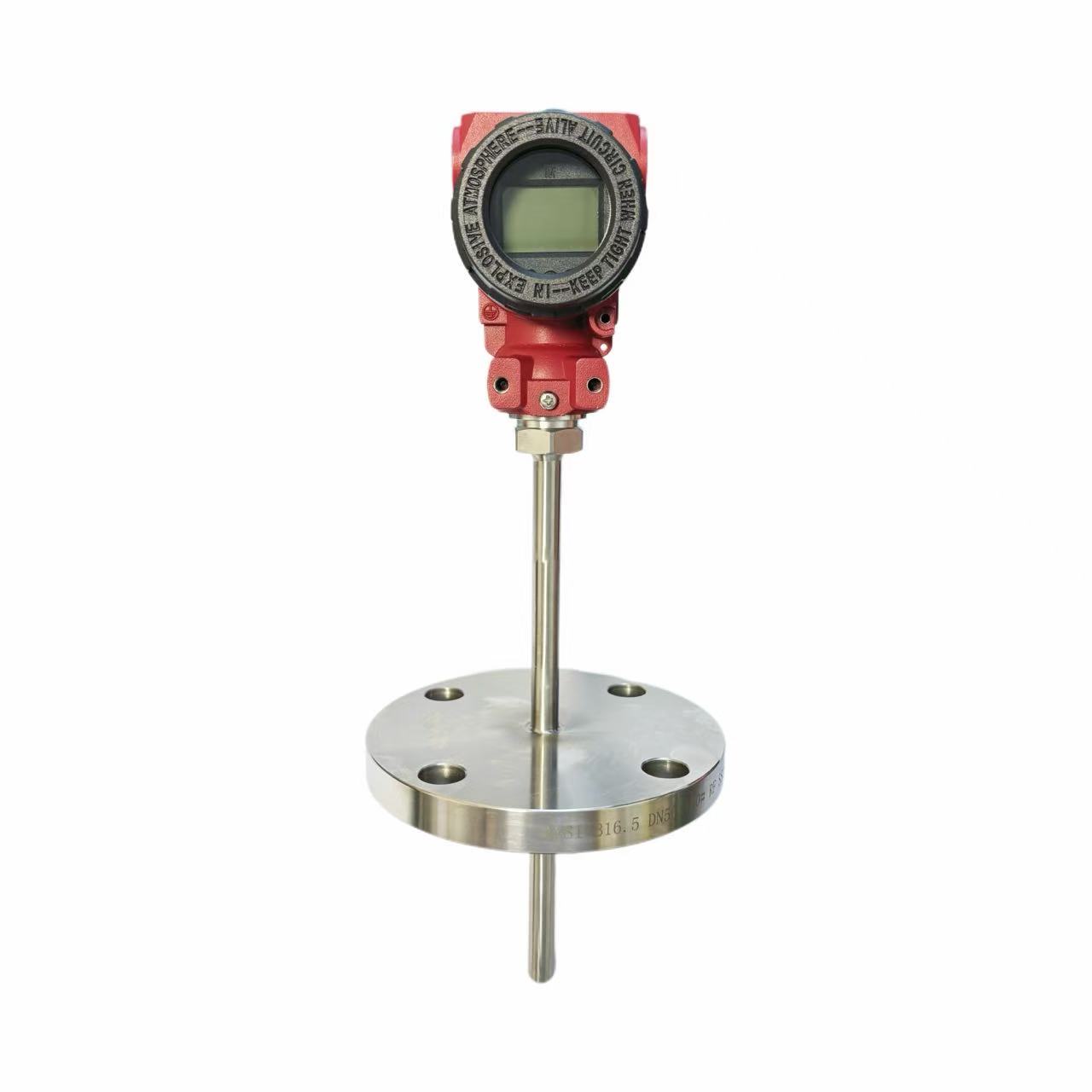

Digital Temperature Transmitter

Temperature Transmitter

Temperature Transmitter for DCS and digital bus systems, using a two-wire transmission method with power and signal on the same pair. Outputs a standard 4–20mA linear signal proportional to temperature. Installed in the cold-end connection head of a thermocouple or RTD for an integrated structure.

Power Supply: 12–35 VDC
Output: HART, 4–20 mA
Measurement Accuracy: RTD 0.1%; TC 0.2%
Sensor Type: Various RTDs and thermocouples
Storage Temperature: -40–120°C
Operating Temperature: -30–80°C
Mounting Screws: M4 × 2

Description

Overview of Temperature Transmitter (Two-Wire Head-Mounted)

The Temperature Transmitter is a head-mounted, two-wire transmitter designed for accurate temperature measurement in industrial processes, particularly in DCS and digital bus systems. Installed directly at the cold-end connection of a thermocouple or RTD, it outputs a standard 4–20mA linear signal proportional to the measured temperature. Capable of measuring -200℃ to 1600℃, it features compact design, low-power circuitry, and PC-programmable measuring ranges, ensuring stable, reliable operation even in harsh industrial environments.

Features of Temperature Transmitter

Two-Wire Transmission – Power supply and signal share the same pair of wires.
Standard Linear Output – 4–20mA proportional to measured temperature.
Compact Head-Mounted Design – Integrated with thermocouple or RTD for easy installation.
Wide Measuring Range – -200℃ to 1600℃, suitable for various industrial media.
PC Programmable – Measuring range can be configured to user specifications.
Low-Power, Low-Drift Circuitry – Minimizes self-heating and reduces ambient temperature influence.
Enhanced Anti-Interference Design – Ensures long-term stability and reliability.
Industrial-Grade Performance – Operates reliably in -40℃ to 80℃ environments.

Applications of Temperature Transmitter

Distributed Control Systems (DCS) and digital bus systems.
Petrochemical and oil & gas industries.
Power generation and energy plants.
Metallurgy, steel, and foundry industries.
Food & beverage processing.
HVAC and building automation.
General industrial process monitoring and control.

Price of Temperature Transmitter

The price of the Temperature Transmitter varies depending on sensor type, output, and measuring range.
For the latest quotation of ZINACA Instruments’ temperature transmitters, please contact us directly for technical consultation and updated pricing.

Temperature Transmitter OEM Service

ZINACA Instruments is a professional industrial instrument manufacturer.
We can customize reliable temperature transmitters according to your system requirements and working conditions.
If you are looking for Temperature Transmitter OEM Service, please contact our sales team for tailored solutions.

Temperature Transmitter Manufacturer

As a leading Temperature Transmitter manufacturer, ZINACA Instruments provides high-quality, durable, and accurate temperature measurement solutions trusted by industries worldwide, including energy, chemical, metallurgy, and food & beverage sectors.

Technical Specifications

Parameter	Specification
Power Supply	12–35 VDC
Output	HART, 4–20 mA
Measurement Accuracy	RTD 0.1%; TC 0.2%
Output Current Limit	20.8 mA
Excitation Current	210 μA
Sensor Type	Various RTDs and thermocouples
Load Resistance	≤500 Ω
Storage Temperature	-40–120°C
Temperature Coefficient	≤25 ppm/°C F.S.
Housing Material	PA66
Operating Temperature	-30–80°C
Mounting Screws	M4 × 2
