Pressure Transmitter
Compact Pressure Transmitter
The Compact Pressure Transmitter is a small, robust device for accurate and stable measurement of liquid, gas, or vapor pressure, with multiple outputs and optional display for flexible integration in industrial automation, HVAC, compressors, and process control.
Pressure Range: -0.1 MPa ~ 0 / 0 ~ 0.1 MPa; 0 ~ 150 MPa
Comprehensive Accuracy: 0.1% FS; 0.25% FS; 0.5% FS; 1% FS
Signal Output: 4–20 mA; 0–5 V; 0–10 V; RS485; Switch-NPN; Switch-PNP
Power Supply: 24 VDC (12–36 V)
Storage Temperature: -20 ~ 85℃
Operating Temperature: -10 ~ 85℃
Wetted Material: SS304; SS316L (Customizable)
Description
Overview of Compact Pressure Transmitter
The Compact Pressure Transmitter is a small and robust device designed for accurate and stable measurement of liquid, gas, or vapor pressure in limited installation spaces. With multiple output options and an optional digital display, it is suitable for industrial automation, HVAC, compressors, and process control applications, ensuring long-term reliability and flexible system integration.
Features of Compact Pressure Transmitter
Compact and lightweight design, ideal for limited-space installations
High accuracy and long-term stability
Multiple output options: 4–20 mA, 0–5 V, 0–10 V, RS485, Switch-NPN, Switch-PNP

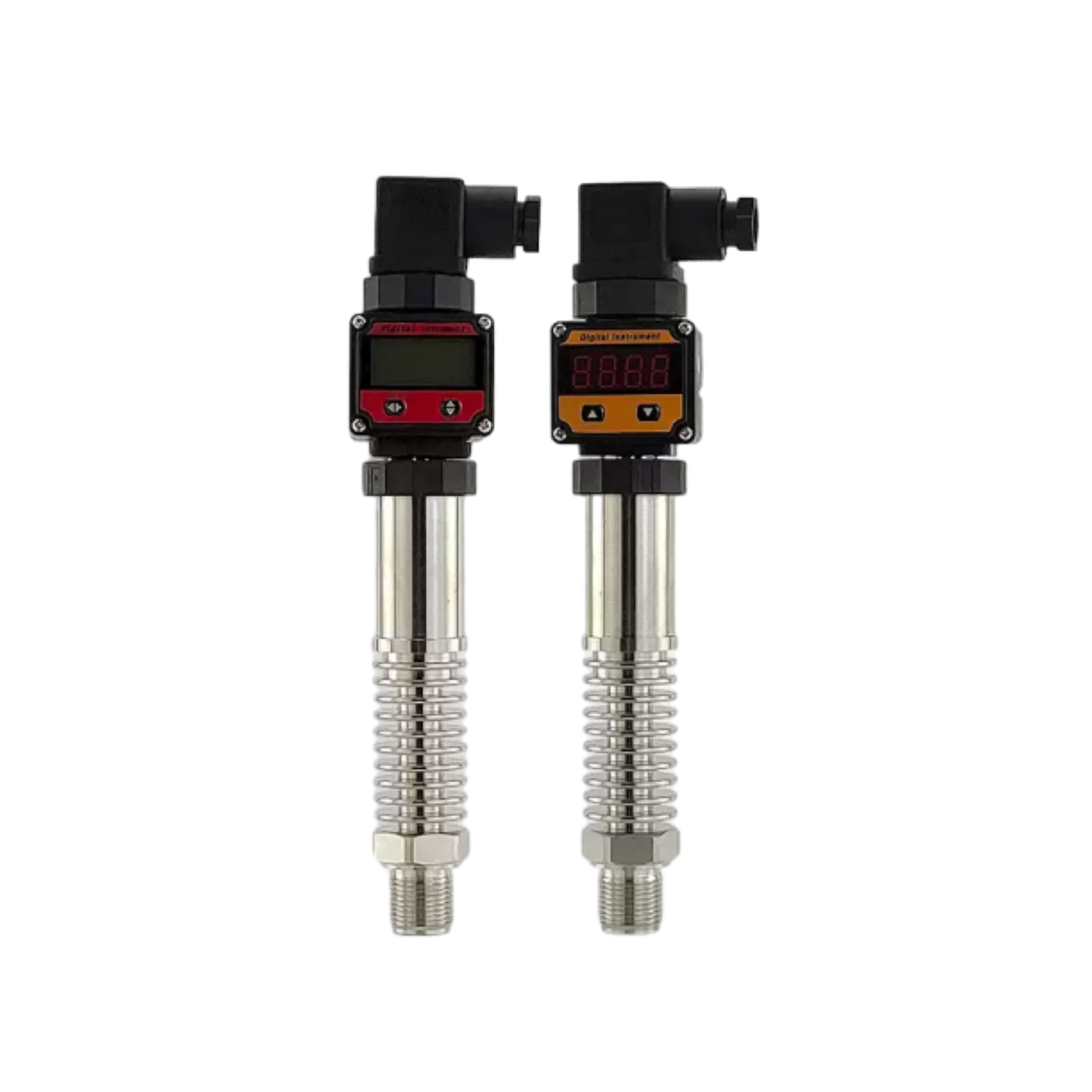

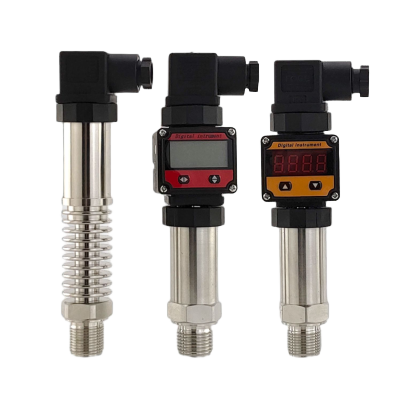

Optional digital display for real-time pressure monitoring
Robust construction with stainless steel diaphragm and housing
Easy installation and low maintenance
IP65 protection for harsh environments
Applications of Compact Pressure Transmitter
Industrial automation and process control
HVAC and refrigeration systems
Air compressors and pumps
Hydraulic and pneumatic systems
Water treatment and environmental engineering
Machinery and equipment monitoring
Price of Compact Pressure Transmitter
The price of a Compact Pressure Transmitter varies depending on actual parameters, materials, and configuration.
If you would like to know the latest price of ZINACA’s transmitter, please contact us for a detailed quotation.
Compact Pressure Transmitter OEM Service
ZINACA Instruments is a professional manufacturer of industrial instrumentation.
We can customize reliable pressure transmitters according to your specific requirements and working conditions.
If you are looking for a Compact Pressure Transmitter OEM Service, please contact us for cooperation.
Compact Pressure Transmitter Manufacturer
As a trusted Compact Pressure Transmitter manufacturer, ZINACA Instruments provides high-quality, accurate, and durable devices for global industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pressure Range | -0.1MPa~0~0.1MPa; 0~150MPa |
| Overload | 150% FS |
| Comprehensive Accuracy | 0.1%FS; 0.25%FS; 0.5%FS; 1%FS |
| Long-term Stability | ±0.1%FS/year |
| Non-linearity | 0.1%FS |
| Repeatability | 0.1%FS |
| Signal Output | 4–20mA; 0–5V; 0–10V; RS485; Switch-NPN; Switch-PNP |
| Power Supply | 24VDC (12–36V) |
| Storage Temperature | -20～85℃ |
| Operating Temperature | -10～85℃ |
| Compensation Temperature | 0～60℃ |
| Wetted Material | SS304; SS316L (Customizable) |
| Housing Material | SS304 |
| Protection Grade | IP65 |
| Explosion-proof | / |
| Electrical Connection | Hirschmann |
| Process Connection | G1/4; G3/8; G1/2; 1/2NPT; 1/4NPT; M14×1.5; M20×1.5, etc. |
