Pressure Transmitter

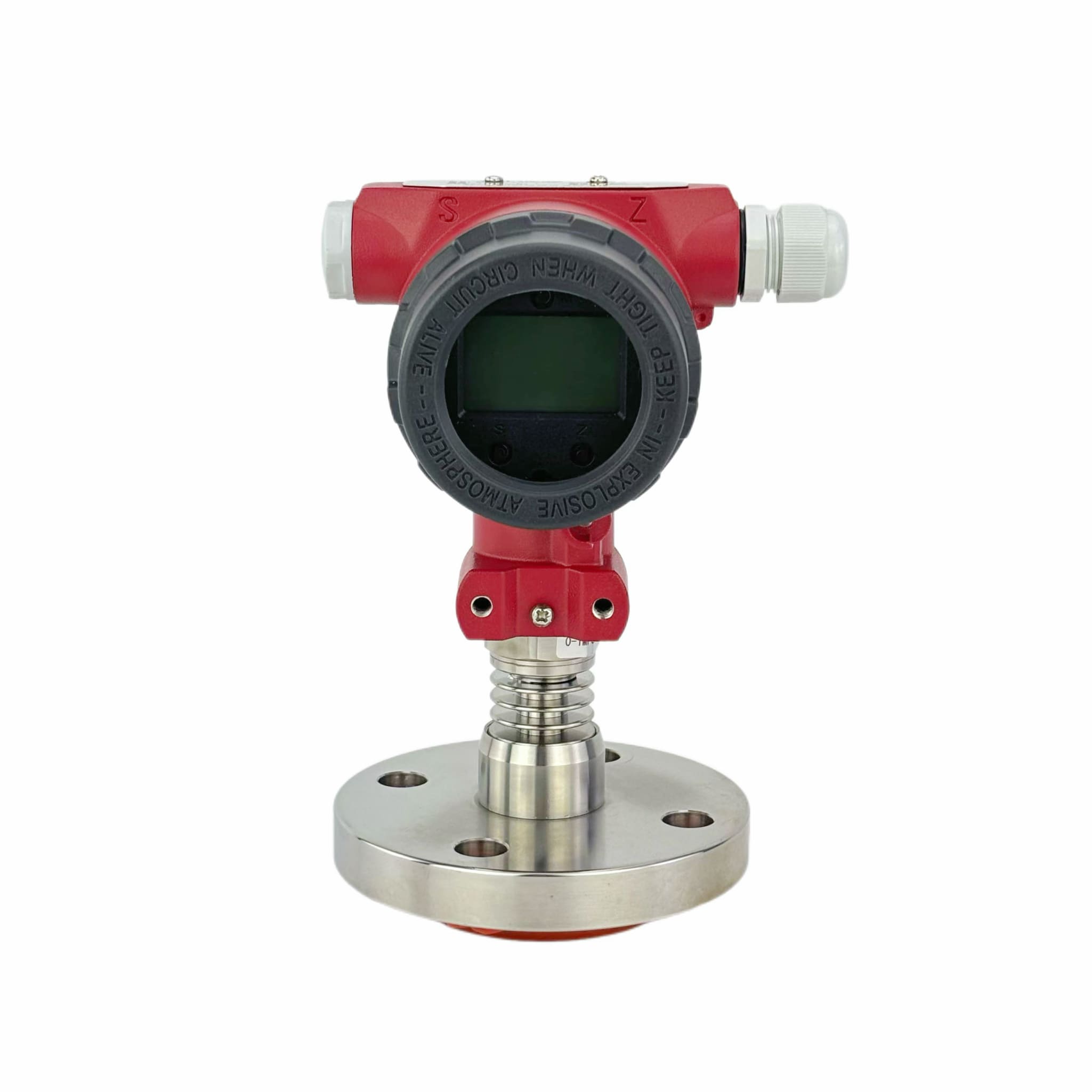

Direct Mounted Diaphragm Pressure Transmitter
The Direct Mounted Diaphragm Pressure Transmitter is a compact, high-performance device providing accurate and stable measurement of liquids, gases, or vapors, ideal for hygienic and industrial process applications.
Measurement Range: 10 kPa – 1 MPa
Output Signal: 4–20 mA, 4–20 mA/HART
Reference Accuracy: ±0.5%, ±0.2%, ±0.1% URL
Medium Temperature: -40–120℃
Measuring Medium: Liquid, Gas, or Vapor
Diaphragm Material: SS316L, Hastelloy C
Annual Stability: ±0.2% URL / 5 years
Description
Overview of Direct Mounted Diaphragm Pressure Transmitter
The Direct Mounted Diaphragm Pressure Transmitter is a high-performance device designed for direct connection to process media, providing accurate, stable, and reliable measurement of liquids, gases, or vapors.
With a flush, corrosion-resistant SS316L diaphragm and optional sanitary design, it is ideal for food, beverage, pharmaceutical, chemical, and other industrial processes where hygiene, durability, and precision are critical.
Features of Direct Mounted Diaphragm Pressure Transmitter
Direct-mounted diaphragm design, suitable for viscous, corrosive, or sanitary media
High measurement accuracy and long-term stability
Wide range of output signals: 4–20 mA, HART, RS485, voltage options
Robust construction with SS316L diaphragm and multiple process connections
Compact and easy-to-install design for simple maintenance
Excellent resistance to temperature, pressure, and vibration fluctuations
IP65 protection for harsh industrial environments
Applications of Direct Mounted Diaphragm Pressure Transmitter
Process control in chemical and petrochemical industries
Food and beverage production with sanitary requirements
Pharmaceutical and biotechnology manufacturing
Water treatment and environmental monitoring
Oil, gas, and energy sectors
Pulp, paper, and textile industries
General industrial automation and pipeline monitoring
Price of Direct Mounted Diaphragm Pressure Transmitter
The price of a Direct Mounted Diaphragm Pressure Transmitter varies depending on actual parameters, materials, and configuration.
If you would like to know the latest price of ZINACA’s transmitter, please contact us for a detailed quotation.
Direct Mounted Diaphragm Pressure Transmitter OEM Service
ZINACA Instruments is a professional manufacturer of industrial instrumentation.
We can customize reliable pressure transmitters according to your specific requirements and working conditions.
If you are looking for a Direct Mounted Diaphragm Pressure Transmitter OEM Service, please contact us for cooperation.
Direct Mounted Diaphragm Pressure Transmitter Manufacturer
As a trusted Direct Mounted Diaphragm Pressure Transmitter manufacturer, ZINACA Instruments provides high-quality, accurate, and durable devices for global industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | -0.1 MPa ~ 100 MPa |
| Accuracy Class | 0.075%, 0.1%, 0.2%, 0.5% |
| Measuring Medium | Liquid, Gas, or Vapor |
| Operating Power | External power; 24 VDC ±15%, Ripple ≤ ±5% |
| Stability | Better than 0.1% |
| Output | 4–20 mA, RS485, HART, 0–10 V, 1–5 V |
| Diaphragm Material | SS316L (standard) |
| Medium Temperature | -20℃ ~ 350℃ |
| Load Resistance | ≤ 1000 Ω |
| Process Connection Material | SS304, SS316, PTFE |
| Display Type | Display, Explosion-proof |
| Protection Class | IP65 |
