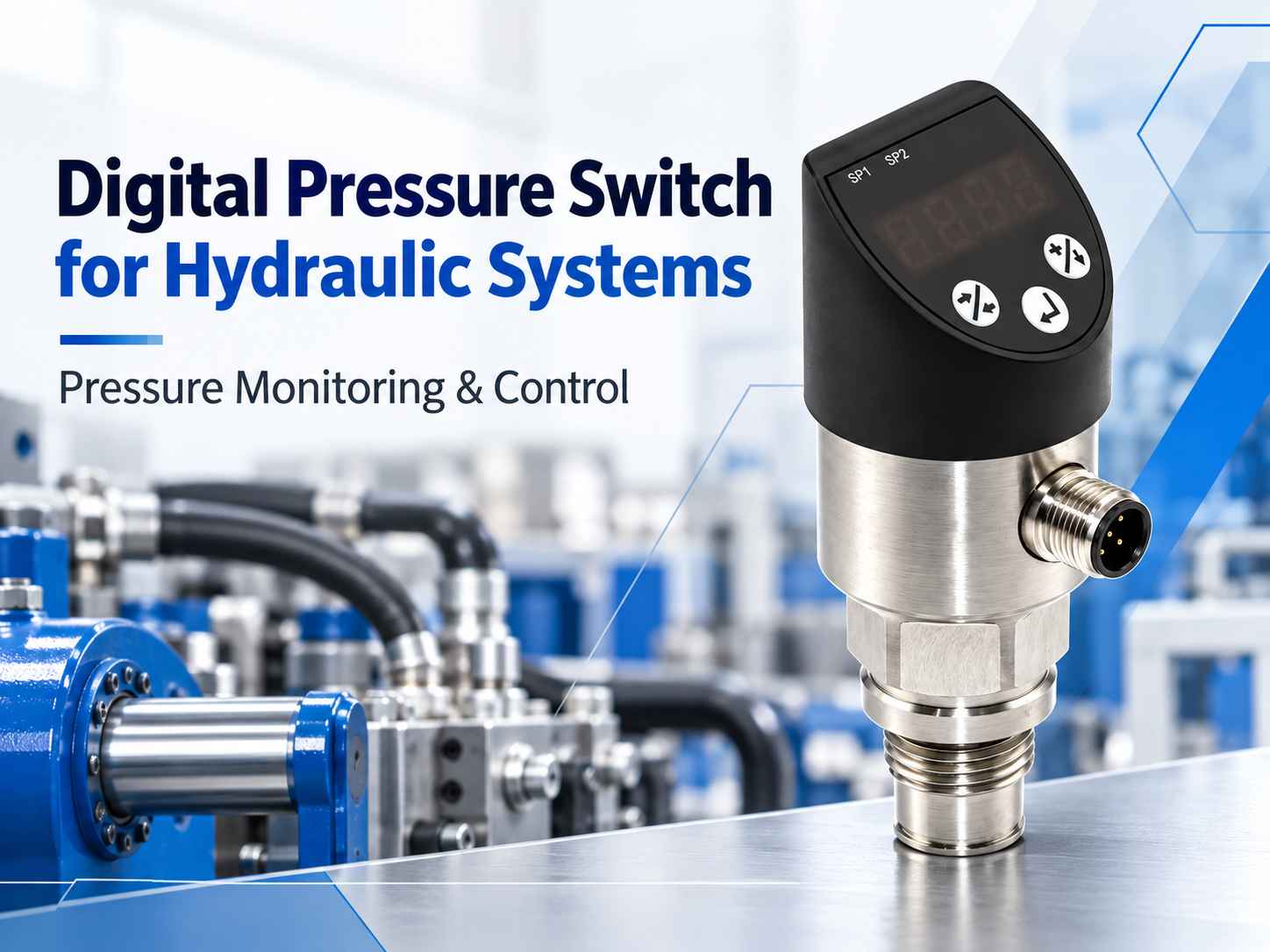

Digital Pressure Switch for Hydraulic Systems: Pressure Monitoring & Control
Hydraulic systems are widely used in industrial machinery, manufacturing equipment, hydraulic power units, and automated production lines. Maintaining the correct hydraulic pressure is essential for stable operation, consistent machine performance, and equipment protection.
Abnormal pressure conditions, such as insufficient system pressure or excessive pressure, may lead to unstable operation, unexpected interruptions, or damage to hydraulic components.
A digital pressure switch for hydraulic systems provides an effective solution for monitoring operating pressure, generating configurable alarm signals, and transmitting pressure information to industrial control systems.
The ZINACA ZNC-PS7865 Digital Electronic Pressure Switch combines dual PNP switching outputs, 4-20mA analog transmission, and a digital pressure display in one compact instrument, making it suitable for hydraulic pressure monitoring and PLC-based automation applications.
Application Overview: Hydraulic Pressure Monitoring
Industrial hydraulic systems use pressurized fluid to transmit power and control mechanical movement.
These systems are commonly found in:
Hydraulic power units (HPUs)
Hydraulic presses
Injection molding machinery
Industrial machine tools
Hydraulic clamping equipment
Automated production machinery
OEM hydraulic control systems
During normal operation, hydraulic pressure must remain within an appropriate range determined by the equipment manufacturer and its operating conditions.
Low pressure may indicate insufficient pressure generation, leakage, or another abnormal system condition. Excessive pressure may indicate an operating or control problem requiring further investigation.
Pressure monitoring provides useful information for detecting these conditions and supporting automated machine control.
Challenges in Hydraulic Pressure Control
Conventional hydraulic equipment may use mechanical pressure switches for basic pressure threshold detection.
Although mechanical switches are suitable for many straightforward applications, modern automation systems increasingly require multiple pressure signals, adjustable switching parameters, and continuous pressure feedback.
1. Monitoring Low and High Pressure Limits
A hydraulic system may require separate monitoring of minimum operating pressure and maximum allowable control pressure.
Using independent switching outputs allows these conditions to be monitored through separate electrical signals.
2. Providing Continuous Pressure Information
A traditional switching-only instrument indicates whether a pressure threshold has been reached but does not provide continuous measurement information.
Industrial controllers may require real-time pressure values for process visualization, trend monitoring, and operational analysis.
3. Adapting to Different Operating Conditions
Different machines and hydraulic operating sequences may require different pressure thresholds.
An electronically adjustable pressure switch allows the switching parameters to be configured according to the application, reducing the need for mechanical readjustment.
4. Integration with PLC Control Systems
Modern hydraulic machinery often uses programmable logic controllers to coordinate pressure monitoring, machine operation, alarms, and interlocks.
Pressure instruments with compatible electronic switching and analog outputs can simplify integration into these control systems.
ZINACA Solution: ZNC-PS7865 Digital Electronic Pressure Switch
The ZNC-PS7865 is an electronic pressure monitoring instrument designed for industrial gas and liquid applications.
It integrates pressure measurement, configurable switching control, analog signal transmission, and local digital indication.
For compatible hydraulic applications, the instrument can be installed at a suitable pressure measurement point and connected to an industrial PLC or monitoring controller.
Dual PNP Outputs for Pressure Alarm Monitoring
The ZNC-PS7865 provides two programmable PNP switching outputs that can be assigned to separate pressure monitoring functions.
For example, a hydraulic power unit may use the outputs as follows:
| Output | Example Function | Control Purpose |
|---|---|---|
| PNP Output 1 (K1) | Low Pressure Warning | Indicates when pressure falls below the configured operating threshold |
| PNP Output 2 (K2) | High Pressure Alarm | Indicates when pressure exceeds the configured high-pressure threshold |
| 4-20mA Output | Continuous Pressure Feedback | Transmits measured pressure to a PLC or monitoring system |
| RS485 Modbus (Optional) | Digital Communication | Provides an additional communication interface when the corresponding configuration is selected |
This is an illustrative control arrangement. The actual switching points and output logic must be configured according to the hydraulic equipment requirements.
4-20mA Analog Output for PLC Monitoring
In addition to pressure switching, the ZNC-PS7865 provides a 4-20mA analog output.
The analog signal allows a compatible PLC or monitoring system to receive continuous pressure information within the configured measurement range.
Depending on the control system design, this information may be used for:
Real-time hydraulic pressure display
Pressure trend monitoring
Machine operating condition monitoring
Process supervision
Pressure data recording through a connected monitoring system
The analog output provides measurement information, while the PLC or supervisory control system performs the required data processing, recording, and control actions.
Adjustable Switching Points and Hysteresis
Hydraulic pressure can fluctuate during normal equipment operation, particularly when hydraulic valves, cylinders, and pumps change operating states.
Frequent switching around a single threshold may cause unnecessary alarms or repeated changes in the switching signal.
The ZNC-PS7865 supports adjustable hysteresis and window switching modes.
Hysteresis can help prevent repeated switching caused by small pressure fluctuations around a setpoint.
Window mode can be used where a switching output needs to represent whether pressure is within or outside a configured pressure band, depending on the selected logic.
A programmable switching delay is also available, allowing operators to configure the output response according to the application.
Typical System Integration
In a typical hydraulic power unit, the pressure switch can be installed at a suitable hydraulic pressure tapping point, such as a monitored pressure line or manifold connection.
The instrument measures the local hydraulic pressure and transmits its electronic signals to the control system.
Example Monitoring Sequence
Pressure Measurement: The digital pressure switch continuously measures pressure at the selected hydraulic connection point.
Low Pressure Detection: When pressure crosses the configured low-pressure switching threshold, the associated PNP output changes state according to its programmed logic.
High Pressure Detection: A second PNP output can be configured to indicate a high-pressure threshold condition.
Analog Transmission: The 4-20mA output continuously transmits measured pressure to the PLC.
Controller Response: The PLC processes the signals and performs the programmed monitoring, alarm, or machine control functions.
Possible control-system responses include displaying a pressure warning, generating an alarm, inhibiting a machine cycle, or initiating a controlled equipment stop when required by the machine design.
The pressure switch provides measurement and switching signals. Protective actions depend on the external control system and must be implemented according to the equipment's safety and operating requirements.
Advantages of Digital Pressure Monitoring in Hydraulic Machinery
Multiple Monitoring Functions in One Instrument
By combining two electronic switching outputs with analog pressure transmission, the ZNC-PS7865 can reduce the number of separate instruments required for certain monitoring applications.
Convenient On-Site Configuration
The integrated LED display and three front-panel buttons allow operators to view measured pressure and configure relevant parameters directly at the instrument.
This can be useful during equipment commissioning, troubleshooting, and routine maintenance.
Flexible Installation Orientation
The housing supports rotation up to 330 degrees relative to the process connection, while the display supports 180-degree orientation adjustment.
These features can improve accessibility and readability when the instrument is installed on hydraulic manifolds or machinery with limited mounting space.
Electronic Integration with Automation Systems
Dual PNP switching outputs and continuous 4-20mA transmission allow the instrument to be integrated into appropriately configured PLC-based industrial monitoring systems.
Optional RS485 Modbus communication offers an additional interface for applications requiring compatible digital communication.
Technical Specifications for Hydraulic Applications
The following specifications summarize the ZNC-PS7865 features relevant to hydraulic pressure monitoring.
| Parameter | Specification |
|---|---|
| Model | ZNC-PS7865 |
| Instrument Type | Digital Electronic Pressure Switch |
| Measurement Range | Multiple selectable ranges, up to 60 MPa |
| Supply Voltage | 12-30 VDC |
| Switching Outputs | 2 x PNP |
| Analog Output | 4-20mA |
| Communication | Optional RS485 Modbus |
| Switching Modes | Hysteresis / Window |
| Switching Response | Less than 10 ms |
| Switching Delay | 0-1000 seconds, configurable |
| Display | Blue LED with Switching Indicators |
| Process Connection | G1/4 Male Shown; Other Connections Available |
| Electrical Connection | M12 x 1 Connector |
| Protection Rating | IP65 |
| Operating Temperature | -30°C to +80°C |
| Medium Temperature | -30°C to +80°C |
The required pressure range, hydraulic fluid compatibility, mounting connection, and output configuration should be confirmed before installation.
Installation and Selection Considerations
Selecting a digital pressure switch for hydraulic equipment requires evaluation of the actual system conditions.
1. Confirm the Hydraulic Pressure Range
The selected measuring range must accommodate normal operating pressure, switching thresholds, and expected pressure variations.
Potential pressure spikes and overload conditions should also be considered when selecting the instrument.
2. Check Hydraulic Fluid Compatibility
The ZNC-PS7865 features stainless steel wetted components.
Compatibility with the specific hydraulic oil or other process fluid should be verified, particularly where special additives or aggressive media are present.
3. Confirm the Process Connection
The standard datasheet illustrates a G1/4 male process thread. Other process connections may be available according to the selected configuration.
The connection must be compatible with the hydraulic manifold or pressure tapping point.
4. Select the Electrical Output Configuration
The standard output arrangement includes dual PNP switching outputs and 4-20mA analog transmission.
An RS485 Modbus communication option is also available.
Electrical connector pin configuration, PLC input compatibility, and required signals should be confirmed before ordering.
5. Check Operating Temperature and Environment
The ZNC-PS7865 specifies an operating and medium temperature range of -30°C to +80°C and an IP65 protection rating.
Installation conditions must remain within the applicable product specifications.
For hydraulic circuits exposed to substantial vibration, pressure pulsation, or transient pressure peaks, the complete installation arrangement should be evaluated by the equipment designer.
Other Suitable Industrial Applications
Although hydraulic machinery is a primary application, the ZNC-PS7865 can also be considered for other compatible pressure monitoring systems.
Pneumatic Equipment: Compressed air pressure monitoring and configurable pressure alarms.
Industrial Pumps: Pressure threshold detection and analog pressure feedback.
Air Compressors: Pressure monitoring and PLC-based operating status control.
Machine Tools: Hydraulic and pneumatic pressure monitoring in automated machinery.
OEM Equipment: Integrated pressure indication, electronic switching, and analog transmission.
Actual suitability depends on the process medium, pressure range, installation conditions, and electrical requirements.
Conclusion
Reliable hydraulic pressure monitoring is an important part of modern industrial automation.
A digital pressure switch for hydraulic systems can provide both pressure limit monitoring and continuous measurement feedback, allowing appropriately designed control systems to identify abnormal operating conditions and respond according to programmed logic.
The ZINACA ZNC-PS7865 Digital Electronic Pressure Switch combines dual PNP switching outputs, 4-20mA analog transmission, configurable switching parameters, and a digital LED display in a compact industrial instrument.
These functions make it a practical option for compatible hydraulic power units, industrial machinery, and PLC-controlled pressure monitoring applications.
Find the Right Digital Pressure Switch for Your Hydraulic System
ZINACA Instruments provides digital pressure monitoring solutions for industrial equipment manufacturers, system integrators, distributors, and industrial end users.
To select a suitable digital electronic pressure switch, please provide the required pressure range, hydraulic medium, operating temperature, process connection, output signals, and supply voltage.
