Infrared Temperature Sensor

Overview

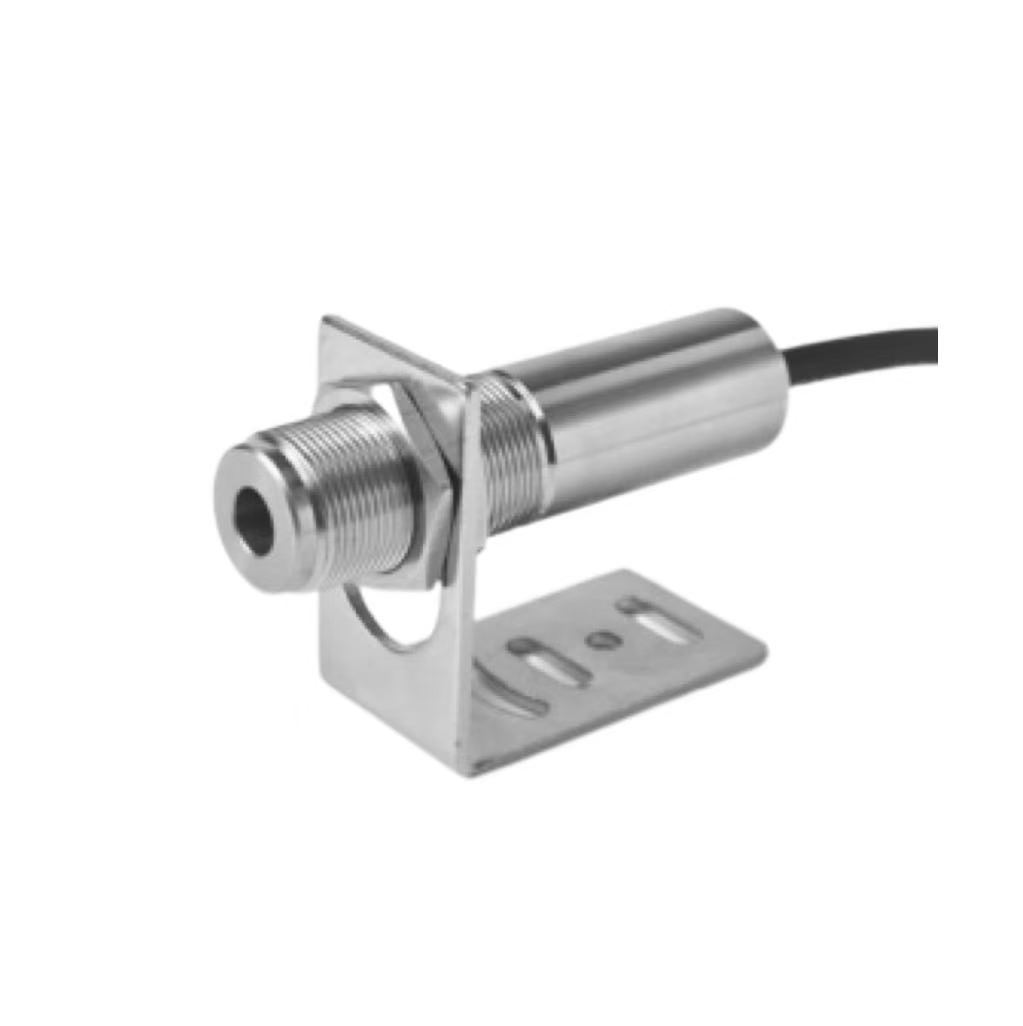

The ZNC-IRS Infrared Temperature Sensor provides continuous, non-contact surface temperature measurement for industrial equipment and automated production lines.

It is available with 4-20mA, 0-5V or RS485 output for connection to PLCs, displays and control systems. The compact 304 stainless-steel housing, M18 threaded installation and IP65 protection allow easy integration into industrial machinery.

The sensor is suitable for non-metallic materials, painted surfaces and coated metal surfaces, with available measuring ranges up to 800°C.

Features

• Non-contact measurement for hot, moving or inaccessible targets

• Compact stainless-steel design for easy machine installation

• Analog and digital outputs for industrial control integration

• Fast response for continuous temperature monitoring

• Customizable cable length and wiring configuration

• Optional protection against microwave interference

Applications

The ZNC-IRS infrared temperature sensor can be used in:

• Metallurgy and heat-treatment equipment

• Chemical-processing systems

• Electric-power equipment

• Photovoltaic manufacturing

• Cement and glass production

• Refractory-material production

• Crystal-material manufacturing

• Industrial machinery and automated production lines

Price

The price depends on the measuring range, output signal, cable length, accessories, order quantity and customization requirements.

For an accurate quotation, please provide: Temperature Range, Output Signal, Target Material, Measuring Distance, Cable Length, Quantity.

OEM and Customization

ZINACA Instruments provides OEM and customization support for the ZNC-IRS, including:

• 4-20mA, 0-5V or RS485 output

• Customized cable length

• Two-wire, three-wire or four-wire connection

• Customized label and nameplate

• Customer logo and packaging

• Optional dust cover and air-purge accessory

• Customization availability and MOQ depend on the specific requirements.

Selection Notes

• Temperature Range: Select a range that covers both the normal and maximum operating temperature.

• Target Material: The fixed emissivity is 0.95, making the sensor suitable for most non-metallic materials, painted surfaces and coated metals.

• Reflective Metals: Bare or polished metal surfaces may require technical evaluation because low emissivity can affect measurement accuracy.

• Measuring Distance: The sensor has a 20:1 distance-to-spot ratio. The target should be larger than the measurement spot.

• Installation Environment: Dust, smoke or steam may affect the infrared signal. An air-purge accessory is recommended for contaminated environments.

Frequently Asked Questions

1. What output signals are available?

   The ZNC-IRS is available with 4-20mA, 0-5V or RS485 output.

2. Can it be connected to a PLC?

   Yes. The sensor can be connected to compatible PLC analog input modules or RS485 communication systems.

3. Can it measure metal surfaces?

   It is suitable for painted or coated metals. Bare, polished and highly reflective metals should be evaluated before selection.

4. Can the cable length be customized?

   Yes. The standard cable length is 2 meters, and other lengths are available on request.

5. Is it suitable for dusty environments?

   The housing is rated IP65. A dust cover or air-purge accessory is recommended when dust or smoke may contaminate the optical window.
