Temperature Transmitter

The Temperature Transmitters provide precise and stable measurement for RTD and thermocouple sensors, with 4–20mA, RS485, or HART output, compact stainless steel design, and long-term reliability for oil & gas, chemical, metallurgy, power, food, and environmental industries.

Input Types: Thermocouple: K, N, E, J, T, S, R, B; RTD: Pt100
Output Signal: 4–20 mA two-wire; 4–20 mA + HART two-wire; RS485 four-wire
Measuring Range: -200°C to +1600°C (depending on selected thermocouple or RTD type)
Accuracy: Intelligent type: ±0.1%, ±0.2%; Analog type: ±0.5% (includes linearity, hysteresis, and repeatability)
Operating Temperature: -25°C to +85°C
Power Supply: 12–30 VDC (nominal 24 VDC) with reverse polarity protection

Description

Overview of Temperature Transmitter

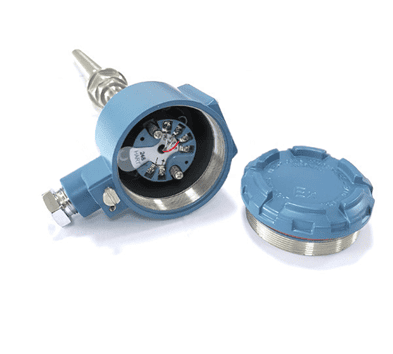

The Temperature Transmitter is a high-performance instrument designed for accurate and stable temperature measurement in industrial applications. Supporting multiple input types including RTD (Pt100) and thermocouples (K, N, E, J, T, S, R, B), it offers a wide measuring range from -200°C to +1600°C with high precision.
Equipped with advanced signal conditioning and intelligent compensation, it provides reliable 4–20 mA, RS485, or HART output signals for process monitoring and control. With its compact stainless steel construction, excellent anti-interference ability, and long-term stability, this transmitter is widely used in oil & gas, chemical, metallurgy, power, food, and environmental industries.

Features of Temperature Transmitter

High Accuracy and Stability – Ensures precise temperature measurement with minimal drift and long-term reliability.
Multiple Sensor Inputs – Compatible with RTD and various thermocouple types for broad application flexibility.
Versatile Output Options – Supports 4–20 mA, RS485, and HART for seamless system integration.
Advanced Signal Conditioning – Provides stable and noise-resistant signal transmission over long distances.
Compact and Durable Design – Stainless steel housing with epoxy encapsulation for corrosion and shock resistance.
Optional LED Display – User-friendly interface for real-time data visualization and calibration.
Energy Efficient – Low power consumption with high performance and cost-effectiveness.

Applications of Temperature Transmitter

Oil & Gas Industry – Pipeline temperature monitoring, refining processes, and production control.
Chemical & Petrochemical Plants – Reactor and tank temperature management.
Metallurgy & Steel Industry – Furnace and molten metal temperature measurement.
Power Generation – Boilers, turbines, and heat exchangers.
Food & Beverage – Processing, sterilization, and temperature-regulated storage.
Pharmaceutical & Biotechnology – Cleanroom and process temperature control.
Marine & Aviation Systems – Engine and onboard process temperature monitoring.
Environmental Engineering – Waste treatment, heating, and cooling process monitoring.

Price of Temperature Transmitter

The price of the Temperature Transmitter varies depending on specifications, sensor type, and output configuration.
For the latest quotation of ZINACA Instruments’ temperature transmitters, please contact us directly for technical consultation and updated pricing.
