What Is a Swirl Flowmeter? A Comprehensive Guide to Intelligent Gas Measurement

Introduction: The Smart Solution for Gas Flow Monitoring

In the world of industrial gas measurement, accuracy and reliability are paramount. The Swirl Flowmeter (also known as the Precessing Vortex Flowmeter) is a highly advanced, intelligent instrument designed to measure the flow of various gases. Unlike traditional flowmeters, this device integrates flow, temperature, and pressure detection into a single unit. It is an ideal choice for the petroleum, chemical, power, and metallurgical industries, offering automated compensation for temperature, pressure, and compressibility factors to ensure precise data under varying field conditions.

How Does a Swirl Flowmeter Work?

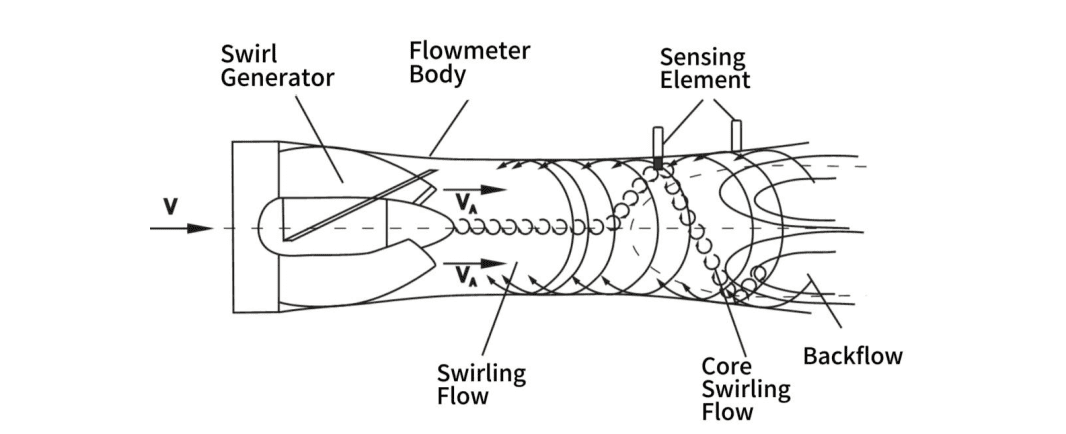

The working principle of the Swirl Flowmeter is based on a unique fluid dynamics phenomenon known as "vortex precession."

The flow sensor's internal profile resembles a Venturi tube. The process follows these steps:

Vortex Generation: At the inlet, a set of spiral guide vanes forces the incoming fluid into a powerful swirling motion (vortex).

Precession: As this swirling fluid enters the expansion section, it encounters a backflow effect, causing the vortex to undergo a secondary rotation. This creates a gyroscopic motion called vortex precession.

Linear Detection: The frequency of this precession is directly proportional to the flow rate and is largely unaffected by the fluid's physical properties or density.

Signal Processing: A piezoelectric sensor detects this frequency. The signal is then amplified, filtered, and converted into pulses. Finally, the microprocessor integrates this data with real-time temperature and pressure readings to display instantaneous flow, cumulative flow, and environmental data on the LCD screen.

Core Components of the Device

A Swirl Flowmeter consists of seven essential parts:

1. Vortex Generator (Guide Vanes)

2. Housing/Body

3. Intelligent Flow Integrator (Calculator)

4. Temperature Sensor

5. Pressure Sensor

6. Piezoelectric Crystal Sensor

7. Deswirler (Flow Straightener at the outlet)

Technical Specifications

One. Nominal Diameter: DN15 to DN200mm. Two. Accuracy Class: Available in plus or minus 1.0 percent or plus or minus 1.5 percent. Three. Body Materials: Choice of Aluminum Alloy, 304 Stainless Steel, or 316 Stainless Steel. Four. Applicable Media: Compressed air, oxygen, nitrogen, carbon dioxide, natural gas, argon, liquefied coal gas, and more. Important Constraint: It cannot measure corrosive or moisture-heavy media such as chlorine, hydrogen, steam, or ammonia.

Key Features and Advantages

One. Maintenance-Free Design: With no mechanical moving parts, the device is resistant to wear, highly stable, and offers a long service life without the need for specialized maintenance. Two. Integrated Intelligence: The smart design combines the flow probe, microprocessor, and pressure/temperature sensors into a compact, built-in unit. It performs real-time tracking, compensation, and compression factor correction automatically. Three. High Performance: Powered by a 16-bit computer chip, the meter is compact yet powerful. Four. Interference Suppression: Utilizing dual-detection and smart anti-vibration technology, it effectively filters out interference signals caused by pipeline vibrations or pressure fluctuations. Five. Wide Flow Range: The measurement range is broad (ratio of max to min flow is 15 to 20), allowing it to work effectively in low-flow areas where orifice plates or standard vortex flowmeters struggle. Six. User-Friendly Display: Features a multi-digit dot matrix screen that clearly displays volume flow (standard and working conditions), total flow, pressure, and temperature. The meter head can also rotate 360 degrees for easy reading from any angle. Seven. Data Security: Uses EEPROM technology to ensure that parameters and up to one year of historical data are permanently saved, even during power loss. Eight. Flexible Connectivity: Outputs include frequency pulses, 4-20mA analog signals, and an RS485 interface (up to 1.2km transmission) for networking with computers. It can be powered by internal batteries or an external supply.

Applications of the Swirl Flowmeter

Petroleum and Petrochemical: Measuring natural gas and coal gas flow in refineries and distribution lines. Power and Metallurgy: Monitoring industrial gases used in combustion or cooling processes. Industrial Process Control: Ideal for any facility requiring automated gas flow compensation and remote data transmission.

Price of Swirl Flowmeter

The price of a Swirl Flowmeter depends on the nominal diameter (DN size), material of the body (Aluminum vs. Stainless Steel), and specific accuracy requirements. Because it integrates three sensors into one, it offers excellent value by reducing the need for separate temperature and pressure transmitters. To receive a detailed quotation and the latest pricing for ZINACA Instruments products, please contact us with your specific application parameters.

Custom Swirl Flowmeter OEM Service

ZINACA Instruments is a professional manufacturer of high-precision gas measurement tools. We provide comprehensive OEM and customization services: Customizing body materials and connections for specific piping layouts. Calibrating sensors for specific gas types and pressure ranges. Private labeling and custom communication protocols for system integrators. If you are looking for a reliable partner for your gas metering projects, please contact ZINACA Instruments for professional support.

Swirl Flowmeter Manufacturer

As a leading Swirl Flowmeter manufacturer, ZINACA Instruments is committed to delivering stable, accurate, and durable measurement solutions. Our products undergo rigorous testing to ensure they meet the highest industrial standards for gas custody transfer and process monitoring worldwide.
