What does a Flow Switch do?

What does a Flow Switch do?

A flow switch detects whether a fluid is moving through a system and triggers a signal to start or stop related equipment such as pumps, valves, or alarms. But what exactly does it do, and how does it work? Let’s find out.

What Is Flow?

Before understanding what a flow switch does, it’s important to know what “flow” means.
Flow refers to the movement of a liquid or gas through a pipe or channel. The flow rate—how much fluid passes a certain point in a given time—can affect temperature, pressure, and overall system performance.
Maintaining a proper flow rate ensures that machinery operates safely and efficiently, and this is exactly where a flow switch becomes essential.

How Does a Flow Switch Work?

A flow switch detects changes in fluid movement and converts them into an electrical output signal. Depending on the design, it can sense flow through mechanical movement or temperature variations.

1. Thermal Flow Switches

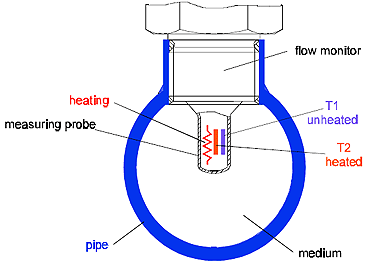

   These operate on the principle of heat transfer. When a fluid flows past a heated sensor, it carries away heat, changing the sensor’s temperature balance. This temperature difference is used to determine whether flow is present.






2. Paddle Flow Switches

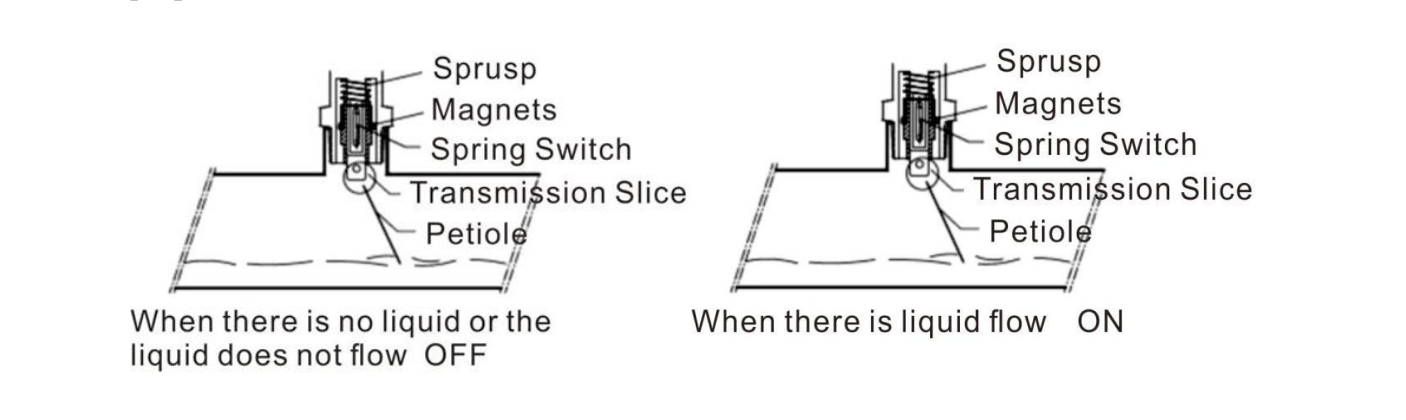

   These feature a small paddle or vane inserted into the pipeline. As fluid moves, the paddle is pushed, triggering a microswitch when the flow reaches a set speed. It’s a simple, reliable design ideal for water or non-corrosive liquids.



3. Piston Flow Switches
   Inside these switches, a spring-loaded piston moves with the flow. When the flow reaches a preset value, the piston shifts position to activate a reed switch. This type is suitable for hydraulic systems and high-pressure applications.






Applications of Flow Switches

Flow switches are widely used across various industries to ensure proper system operation and protection. In HVAC systems, they monitor cooling water circulation; in water treatment plants, they prevent pumps from running dry; in chemical and petrochemical industries, they safeguard the flow of liquids and gases; in food and beverage production, they control hygienic liquid flow processes; and in power generation and automation systems, they provide reliable process feedback. By ensuring consistent flow monitoring, flow switches not only protect valuable equipment but also enhance energy efficiency and overall system reliability.

Types of Flow Switches

ZINACA Instruments offers three main categories of flow switches designed for different working environments:
Thermal Flow Switch: Suitable for both liquid and gas detection; No moving parts, maintenance-free design; High precision and long service life
Paddle Flow Switch: Ideal for water, oil, or coolant applications; Simple mechanical structure and easy installation; Cost-effective solution for general-purpose use

Piston Flow Switch: Compact design, high-pressure resistance; Fast response and stable switching performance; Excellent for hydraulic and lubrication systems

How to Choose the Right Flow Switch

Selecting the right flow switch depends on several factors, including the type of fluid (liquid or gas), the required flow range and pipe size, the working pressure and temperature, the output signal type (relay, PNP/NPN, or analog), and the installation method or explosion-proof requirements. Choosing the correct model ensures stable performance and reliable system protection. If you are uncertain which type best suits your application, ZINACA’s technical team can provide professional guidance and detailed technical datasheets to help you make the optimal selection.

Flow Switch Price

Flow switch prices vary depending on specific technical parameters such as material, connection type, signal output, and environmental requirements. The product price will change based on the actual specifications. If you would like to know the latest price of ZINACA flow switches, please feel free to contact us for an updated quotation.

Custom Flow Switch OEM

ZINACA Instruments provides OEM and customization services to meet unique industrial requirements. Whether you need a customized probe length, output type, or housing material, our engineers can tailor the design to your application.
We also offer branding support for OEM partners, helping distributors strengthen their market presence with high-quality, customizable flow switches.

Supplier of Flow Switch

As a professional manufacturer and supplier, ZINACA Instruments delivers a complete range of thermal, paddle, and piston flow switches. Our products are ISO and CNAS certified, ensuring quality and consistency for global customers in the oil, chemical, water treatment, and automation industries.
