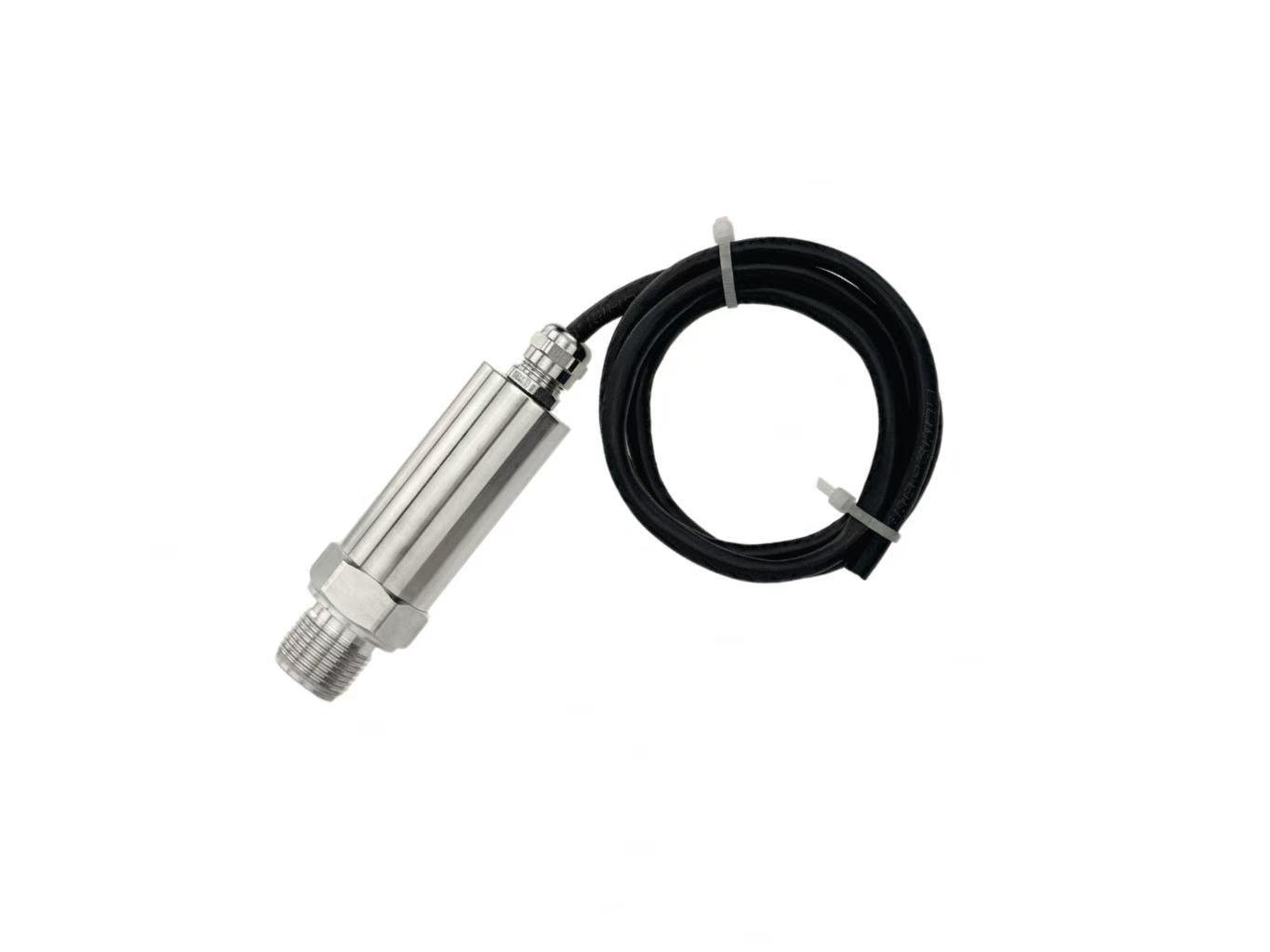

What is an IP68 Waterproof Pressure Transmitter?
In industrial practice, pressure transmitters are the most commonly used sensors for automation and control. However, many field environments involve high humidity, rain, or direct water immersion. This is where the IP68 Waterproof Pressure Transmitter becomes essential.As a specialist in high-reliability sensing, ZINACA provides this analysis of the technology behind waterproof pressure transmitters and why they are critical for outdoor and wet-site operations.
What Does IP68 Mean?
The IP (Ingress Protection) rating is an international standard used to define the sealing effectiveness of electrical enclosures.
IP6 (Dust Tight): Total protection against dust and solid particles.
IP8 (Immersion): The highest level of waterproof protection. An IP68-rated device is designed to be suitable for continuous immersion in water under conditions specified by the manufacturer.
This rating ensures that the transmitter can be installed outdoors or in flooded environments without the risk of electrical failure or signal drift.
Core Technology and Construction
A waterproof pressure transmitter is engineered with multiple layers of protection to isolate sensitive electronics from the environment:
OEM Pressure Sensor: At its core, the device uses a sensor with a stainless steel isolation diaphragm. This diaphragm acts as the primary interface, sensing pressure while keeping the internal components dry.
Laser-Trimmed Compensation: To ensure accuracy, the sensor undergoes computer-automated testing and laser resistance trimming. This compensates for zero-point and sensitivity shifts across a wide temperature range.
Integrated Housing: The amplification circuit is housed within a fully sealed stainless steel body. This structure converts the sensor’s raw signal into a standardized output (such as 4-20mA) while maintaining total protection.
Key Features and Advantages
High Stability and Accuracy: Features a high-precision integrated chip and a wide-voltage power supply design.
Signal Integrity: Includes cut-off frequency design for strong anti-interference capabilities and lightning protection, ensuring stable data in stormy conditions.
Durability: Designed for fast response, high stability, and resistance to physical impact.
Ease of Installation: The integrated waterproof structure is compact and convenient for rapid field deployment.
Wide Range of Applications
Due to its robust sealing, the IP68 waterproof pressure transmitter is widely used in:
Outdoor Industrial Sites: Environments exposed to rain, splash, or wash-down procedures.
Water Management: Constant-pressure water supply systems, sewage treatment, and flood monitoring.
Specialized Industries: Shipbuilding, petrochemicals, aerospace, and injection molding machinery, where moisture levels are high.
Hydrology: Measurement in reservoirs, wells, or maritime applications where the device may be submerged.
Tianjin ZINACA Intelligent Equipment Co., Ltd. produces waterproof pressure transmitters that combine rugged diaphragm isolation technology with advanced electronic protection. Our IP68-rated series is built to withstand the harshest humidity and pressure fluctuations, providing the reliable data needed for critical automation systems.
Explore our full range of waterproof sensing solutions at www.zinacainstruments.com or consult our technical team for specialized environmental requirements.
