Digital Flow Switch with 4–20mA Output: A Smart Solution for Cooling Water and Pump Protection

Reliable flow monitoring is essential in industrial automation, particularly in cooling water systems, circulation pumps, hydraulic equipment, and manufacturing processes. Insufficient flow can cause overheating, equipment damage, unexpected shutdowns, and costly maintenance.

Traditional mechanical flow switches can detect basic flow conditions, but modern industrial applications often require more information, including real-time flow velocity, medium temperature, and continuous analog signals for PLC integration.

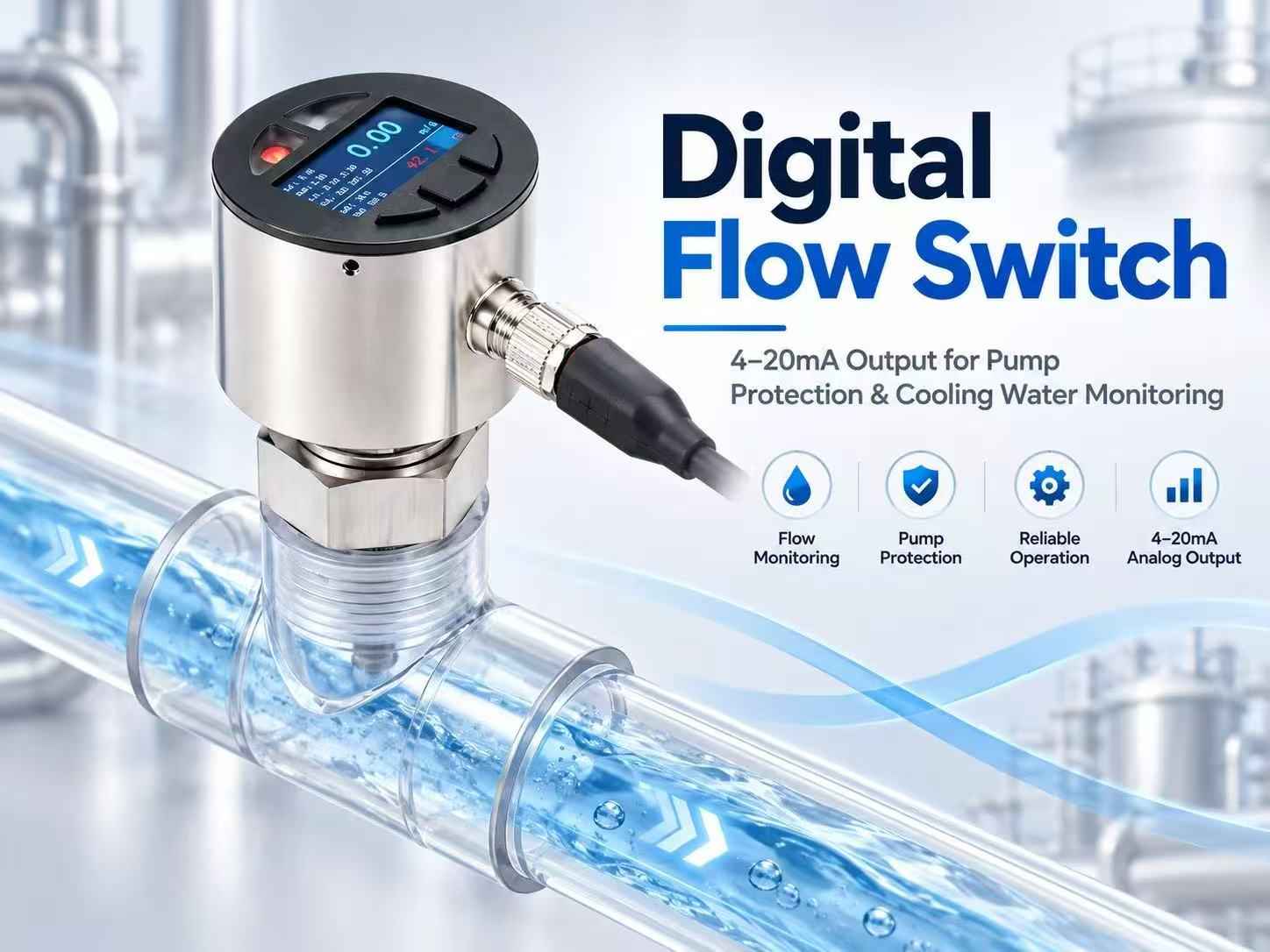

The ZINACA ZNC-DF1 Digital Flow Switch addresses these requirements by combining thermal flow sensing, temperature monitoring, a digital LCD display, configurable PNP/NPN switching, and 4–20mA analog outputs in one compact instrument.

What Is a Digital Thermal Flow Switch?

A digital thermal flow switch is an electronic instrument that detects fluid movement using the heat-transfer principle.

Unlike mechanical paddle flow switches, thermal flow switches have no moving mechanical sensing components. Instead, they detect changes in heat transfer between a heated sensing element and the surrounding medium.

The ZNC-DF1 uses PTC thermistor-based thermal sensing technology to monitor flow velocity and medium temperature simultaneously.

As the fluid flows past the probe, it removes heat from the sensing element. The amount of heat transferred changes with flow velocity, allowing the sensor electronics to determine the flow condition.

The measured information is processed and displayed locally, while switching and analog signals can be transmitted to an industrial control system.

This design provides several advantages:

• No mechanical moving parts that can wear or become stuck

• Very low pressure loss in the pipeline

• Simultaneous monitoring of flow velocity and medium temperature

• Adjustable switching points for different operating conditions

• Continuous analog output for PLC and automation systems

• Reduced mechanical maintenance requirements

Key Features of the ZNC-DF1 Digital Flow Switch

1. Simultaneous Flow Velocity and Temperature Monitoring

One of the main advantages of the ZNC-DF1 is its ability to monitor two important process parameters using a single sensor.

The instrument measures:

• Flow velocity: 0.00–2.00 m/s for water

• Medium temperature: 0–100°C

The integrated 1.47-inch LCD provides local measurement information, while dual LED indicators help operators identify the operating status.

This combination is particularly useful in industrial cooling systems, where both insufficient water circulation and abnormal temperature conditions may indicate equipment problems.

2. Flexible PNP/NPN and 4–20mA Output Configurations

Different industrial automation systems require different signal configurations.

The ZNC-DF1 offers two main output combinations:

Both configurations support adjustable switching functions.

The switching logic can be configured as Normally Open (NO) or Normally Closed (NC), and a switching delay of up to 99 seconds can be set according to the application.

For example, a cooling water system can use a PNP switching signal to trigger a low-flow alarm while transmitting a 4–20mA flow signal to the PLC for continuous monitoring.

With the 2A + 1S configuration, the PLC can also receive a separate 4–20mA temperature signal.

This allows operators to monitor both flow and temperature without installing two separate instruments.

3. Digital Display and On-Site Adjustment

The 1.47-inch LCD makes it easier for technicians to check flow and temperature readings directly at the installation point.

Using the integrated push buttons, operators can configure switching parameters on site.

This is useful during commissioning, maintenance, and system adjustments when the required flow threshold may need to be changed.

4. Compact Stainless Steel Construction

The ZNC-DF1 features an SS304 housing and wetted sensing components.

Its compact insertion-type construction is designed for industrial pipeline applications and provides minimal obstruction to the flowing medium.

Additional characteristics include:

• Pressure rating: up to 100 bar

• Power supply: 9–36 VDC

• Protection rating: IP65

• G1/2 male or female process connection

• M12 connector or direct cable options

• Configurable probe lengths

Probe length and connection options can be selected according to the installation requirements.

Typical Industrial Applications

Cooling Water Flow Monitoring

Cooling water circulation is essential for maintaining stable temperatures in industrial machinery.

Insufficient cooling water flow can lead to overheating, unstable production conditions, and damage to temperature-sensitive equipment.

A digital thermal flow switch can monitor water movement and provide a switching signal when the flow falls below a selected threshold.

Typical applications include:

• Industrial chillers and cooling circuits

• Water-cooled machinery

• Heat exchangers

• Welding equipment cooling systems

• Manufacturing process cooling lines

The ZNC-DF1 is especially useful when the control system requires both a low-flow switching signal and continuous flow monitoring.

Pump Dry-Run and Low-Flow Protection

Pumps depend on appropriate operating conditions to avoid excessive heat, seal damage, and mechanical wear.

When a pump loses its water supply or experiences insufficient flow, an electronic flow switch can detect the low-flow condition.

The ZNC-DF1 can send a PNP/NPN switching signal to a PLC or suitable control circuit, allowing the system to activate an alarm or stop the pump according to the programmed control logic.

For pump protection applications, the switching threshold should be selected according to the pump's minimum acceptable operating flow.

The sensor acts as part of the protection and control system; it does not directly replace the pump motor protection equipment.

Hydraulic and Lubrication Systems

Hydraulic and lubrication systems require reliable fluid circulation to maintain normal operation.

A thermal flow switch can help detect abnormal flow conditions in suitable oil or hydraulic-fluid applications.

Because the ZNC-DF1 has no mechanical moving sensing components, it avoids the mechanical wear associated with conventional paddle-type switches.

Media compatibility, operating range, and calibration requirements should be confirmed for oil and hydraulic applications.

Industrial Automation and Process Monitoring

The ZNC-DF1 can also be integrated into automated production equipment that requires electronic flow monitoring.

Its 4–20mA output can provide continuous flow-velocity information to compatible control equipment, while digital switching outputs can be used for alarms and interlocks.

The instrument may also be considered for suitable air and gas monitoring applications, subject to confirmation of the medium-specific measurement performance.

ZNC-DF1 Technical Specifications

The stated flow-velocity range applies to water. Other media should be evaluated based on their properties and the intended operating conditions.

How to Select the Right Digital Flow Switch

Selecting a suitable digital flow switch requires more than checking the pipe diameter.

Several technical factors should be evaluated before ordering.

1. Confirm the operating medium

Specify whether the application involves water, oil, hydraulic fluid, air, or another process medium. Thermal sensing performance depends on the medium and its heat-transfer properties.

2. Determine the operating flow conditions

Identify the normal flow velocity and the required low-flow or high-flow switching point.

If the process data is available only as volumetric flow rate, the pipe dimensions and operating conditions should also be provided.

3. Check the operating temperature and pressure

Confirm that the process conditions are compatible with the sensor's temperature and pressure limits.

4. Select the signal configuration

Choose the output combination according to the control requirements:

• 2A + 1S for dual analog monitoring with one flow switching output

• 2S + 1A for separate flow and temperature switching with one analog flow output

5. Confirm the probe length and installation arrangement

The insertion length should be selected according to the pipe's internal diameter and the position of the sensing element.

For example, the ZNC-DF1 installation guide illustrates a DN100 pipe application with a probe insertion depth reaching at least half of the pipe's internal diameter.

The installation example also illustrates straight pipe sections upstream and downstream to improve measurement conditions.

Actual installation requirements should be reviewed according to the pipe arrangement and application.

Digital Flow Switch vs. Traditional Mechanical Flow Switch

Both electronic thermal flow switches and mechanical flow switches are used for industrial flow monitoring, but they serve different requirements.

For simple flow/no-flow detection, a conventional mechanical flow switch may be sufficient.

However, when an automation system requires continuous flow information, configurable switching, and temperature monitoring, a digital thermal flow switch provides additional functionality.

It is important to note that a thermal flow switch measuring flow velocity is not automatically a substitute for a volumetric flow meter used for totalization or custody-transfer measurement.

Frequently Asked Questions

Can the ZNC-DF1 measure both flow and temperature?

Yes. The ZNC-DF1 monitors flow velocity and medium temperature simultaneously. The 2A + 1S configuration provides separate 4–20mA outputs for both parameters, together with a PNP/NPN flow switching output.

Can the ZNC-DF1 be connected to a PLC?

Yes. The instrument supports industrial PNP/NPN switching and 4–20mA analog signals. The appropriate configuration should be selected according to the PLC input requirements.

Is the ZNC-DF1 suitable for pump protection?

Yes. It can be used as a low-flow detection device within a properly designed pump protection system. The PLC or control circuit can respond to the switching signal according to the required pump protection logic.

Can the probe length be customized?

Yes. Different probe lengths are available according to application requirements. Pipe size, installation position, and insertion depth should be confirmed before selecting the appropriate configuration.

Can the ZNC-DF1 monitor oil or gas?

The product is intended for suitable liquid and gas flow-monitoring applications, including water, oil, and air or gas. However, the published 0.00–2.00 m/s flow range is specified for water. Measurement performance for other media should be confirmed before selection.

Conclusion

The ZINACA ZNC-DF1 Digital Flow Switch provides a practical solution for industrial applications requiring flow velocity monitoring, temperature indication, electronic switching, and continuous analog signals.

By integrating multiple monitoring functions into one compact instrument, it can help simplify instrumentation arrangements in cooling water systems, pump protection applications, and industrial automation equipment.

With configurable PNP/NPN outputs, 4–20mA signals, a local LCD display, and selectable probe lengths, the ZNC-DF1 can be adapted to different monitoring and control requirements.
