What is a Pressure Switch?

What is a Pressure Switch?

In modern industrial automation systems, maintaining proper pressure levels is crucial for safety, efficiency, and equipment protection. One of the key devices that ensures this control is the pressure switch. It acts as a monitoring and protection component, automatically responding when the system’s pressure reaches a preset threshold. From hydraulic systems and air compressors to water pumps and industrial process lines, pressure switches are indispensable in ensuring reliable operation and safety.

What Is a Pressure Switch?

A pressure switch is an instrument designed to monitor fluid or gas pressure in a system and automatically open or close an electrical circuit when a preset pressure value is reached. In simple terms, it converts pressure changes into switching signals used for control and protection functions.

Pressure switches can be mechanical or electronic. Traditional mechanical types use a diaphragm or piston to activate a micro switch, while modern electronic pressure switches use sensors and digital circuits to provide more accurate and flexible control.

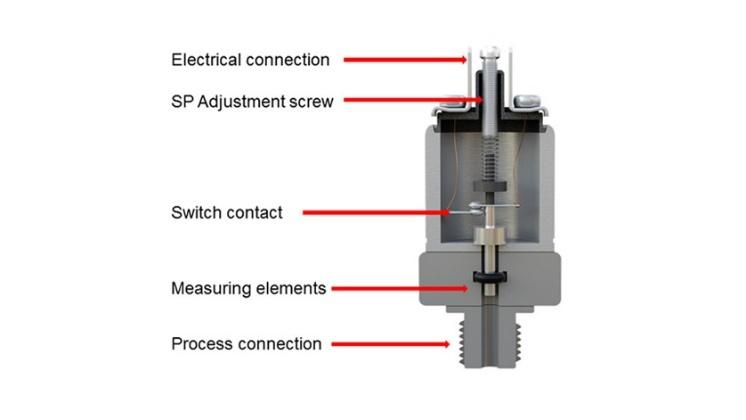

How Does a Pressure Switch Work?

A pressure switch operates by sensing the pressure of a medium (such as air, water, oil, or gas) through a diaphragm or pressure sensor.

When the pressure rises above or falls below the set point, the sensor activates an internal mechanism that changes the switch state—either opening or closing an electrical contact.

This signal can trigger alarms, start or stop pumps, or protect equipment from overpressure or underpressure conditions.

Electronic pressure switches enhance this function by offering digital displays, adjustable set points, and analog or relay outputs, providing precise control and real-time monitoring.

Applications of Pressure Switches

Pressure switches are widely used across various industries to monitor and control pressure levels. Common applications include:

Water Supply Systems – for pump control and dry-run protection.

HVAC Systems – to monitor air and refrigerant pressure.

Hydraulic and Pneumatic Systems – to regulate actuator and valve pressure.

Industrial Process Control – for monitoring oil, gas, and steam pressure.

Automotive and Machinery – to ensure safe operating conditions and prevent system damage.

By automatically responding to pressure changes, pressure switches help ensure equipment reliability, energy efficiency, and operational safety.

Types of Pressure Switches

ZINACA Instruments offers several types of high-performance pressure switches to meet diverse industrial requirements:

Electronic Pressure Switch

The Electronic Pressure Switch is an intelligent device with high-accuracy pressure measurement, digital display, and control. It features excellent shock resistance, a wide adjustable range, analog output, and a solid-state relay for real-time monitoring and automation. Ideal for modern industrial systems requiring precise and efficient pressure management.

Compact Pressure Switch

The Compact Pressure Switch offers precise and reliable monitoring of water and oil pressure. It features a wide measurement range, high overload capacity, flexible NO/NC contact options, and durable gold-plated contacts. Compact in design yet robust in performance, it is perfect for applications that demand stable and accurate pressure control.

How to Choose the Right Pressure Switch?

Selecting the right pressure switch depends on several factors:

Pressure range – choose based on system operating and maximum pressure.

Medium type – consider whether the medium is gas, water, oil, or corrosive fluid.

Switch type – mechanical or electronic, depending on accuracy and functionality.

Output type – relay, transistor, or analog signal output.

Environmental conditions – temperature, vibration, and installation space.

Electrical contact configuration – NO (normally open), NC (normally closed), or both.

Understanding your application requirements will help you choose the most suitable model for accurate and reliable performance.

Pressure Switch Price

The price of a pressure switch varies based on its type, pressure range, materials, output configuration, and special features such as explosion-proof or digital display options.

Our technical sales team at ZINACA Instruments will provide professional advice and a detailed quotation according to your specific requirements.

Custom Pressure Switch OEM

ZINACA Instruments provides custom OEM and ODM services for pressure switches, including branding, housing customization, signal output options, and electrical interface design. Whether you require a private-labeled version or a tailor-made control solution, our engineering team can deliver high-quality customized products that match your industrial standards and branding requirements.

Supplier of Pressure Switch

As a professional pressure switch manufacturer and supplier in China, ZINACA Instruments specializes in developing and producing reliable electronic and mechanical pressure switches. Our products are trusted in the petroleum, chemical, water treatment, power, and HVAC industries worldwide.

We are committed to delivering stable, high-precision instruments and professional OEM services to our global partners.
