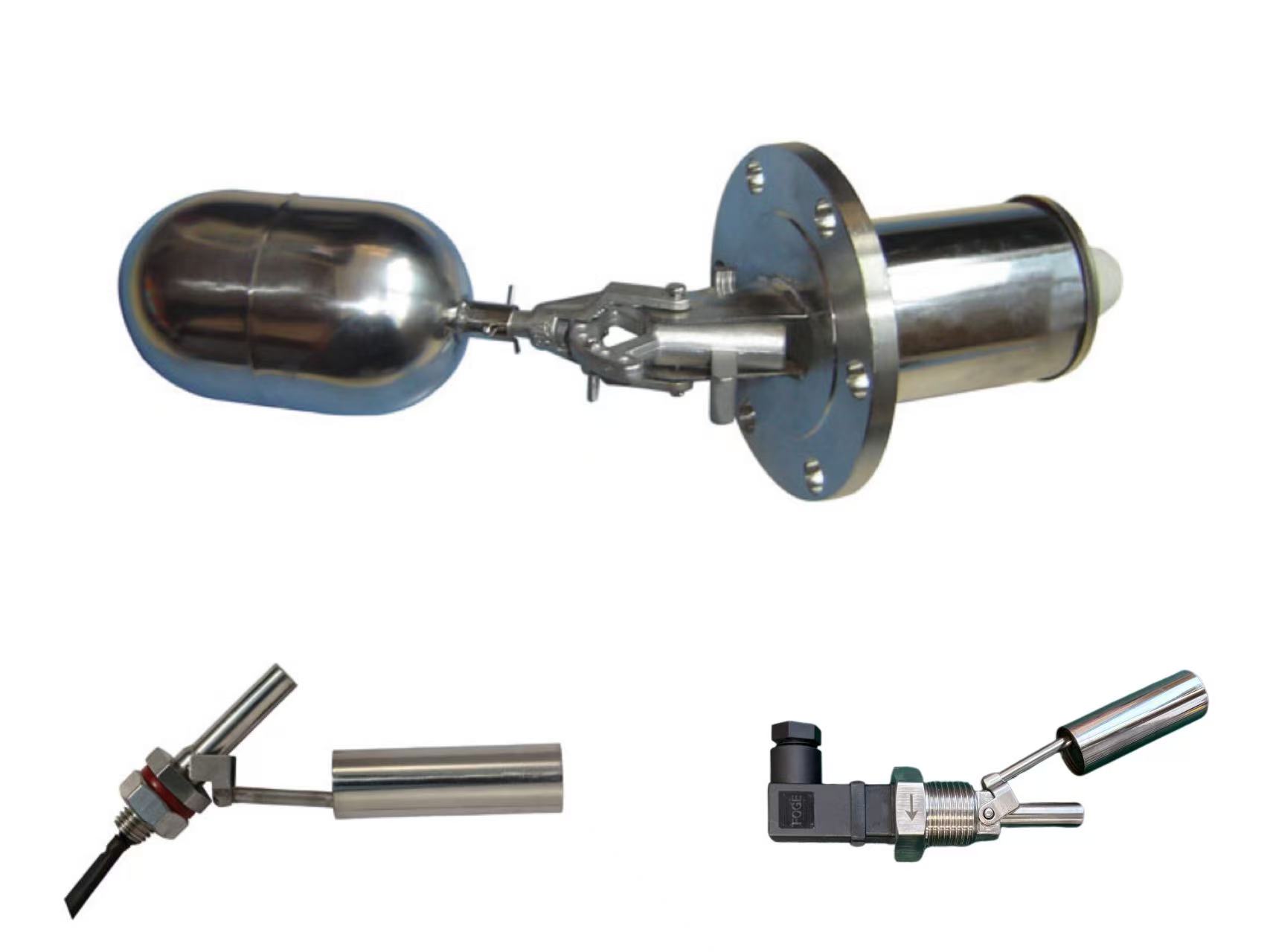

What is a Side-Mounted Float Level Switch?

In the world of industrial automation, the Side-Mounted Float Level Switch stands as a reliable sentry for liquid level detection. By leveraging the simple yet powerful force of buoyancy, this device provides essential point-level control for alarms, pump automation, and safety interlocking in the most demanding environments.

As a specialist in high-precision instrumentation, ZINACA Instruments provides this comprehensive guide to help you understand the mechanics, configuration, and best practices for this essential industrial tool.

Working Principle: The Power of Magnetic Interaction

The core of a side-mounted float level switch is its ability to convert the vertical movement of a float into an electrical switching signal without direct contact between the liquid and the electronics.

Buoyancy Driven: As the liquid level rises or falls, the float moves accordingly. This float is connected to a lever arm fixed on a pivot.

The 20 Degree Rule: When the float tilts at an angle of approximately 20 degrees relative to the horizontal plane, the magnet at the end of the lever arm moves into range of the internal switch.

Switching Mechanisms:

• Reed Switch Type: The arm-end permanent magnet drives a magnetic reed switch (dry reed pipe) inside the housing. The magnetic force attracts or repels the reeds, toggling between NC (Normally Closed) and NO (Normally Open).

• Micro Switch Type: The magnet on the lever arm interacts with a second magnet positioned in front of a micro switch. The mutual repulsion between the magnets pushes the mechanical structure of the micro switch to trigger the circuit.

Robust Structure and Components

A professional-grade float switch, such as those from ZINACA, is divided into two isolated sections: the Wetted Group and the Contact Group.

• Float Assembly: Available in various sizes (from 32.5mm x 68mm to 75mm x 120mm). Materials include Stainless Steel (304, 316, 316L) for high-pressure or PP/PVDF for acidic/alkaline media.

• Transmission Mechanism: A 316 stainless steel lever arm with an adjustable length range of plus or minus 5mm.

• Sealing Unit: Features a double O-ring seal structure and a robust flange (typically 12mm thick) to prevent leaks.

• Explosion-Proof Junction Box: Specifically designed for hazardous areas, capable of withstanding pressures up to 4MPa.

Technical Specifications and Versatility

• Temperature Range: -40°C to 350°C (Special models up to 400°C)

• Max Working Pressure: Up to 16.0 MPa (Standard pressure up to 30kg/cm2)

• Protection Rating: IP65

• Materials: SUS304, 316, 316L, PP, PVDF, PTFE

• Series Options: Standard, High-Temp, Explosion-Proof, Anti-Corrosion, Compact

Installation and Wiring Essentials

To achieve automated control, the wiring is categorized into three functional parts:

• Power Wiring: Connected to the power input and must be reliably grounded (often via the flange) for safety.

• Alarm Signal Wiring: Connects the output terminal to your local or remote alarm devices.

• Control Signal Wiring: Connects the output to the controlled equipment (like a pump or valve) to enable automatic level management.

• Calibration Note: After installation, a manual calibration and parameter setup (range, thresholds, signal type) are required to ensure the accuracy and stability of the readings.

Critical Maintenance and Usage Precautions

To maximize the lifespan of your ZINACA level switch, follow these industrial best practices:

• Location Matters: Do not install the switch near liquid inlets or outlets to avoid turbulence interference.

• Media Check: The liquid should not contain magnetic impurities, and the surface should not fluctuate too violently.

• Orientation: Ensure the cable entry of the junction box faces downward to prevent moisture ingress.

• Mechanical Clearances: The float and linkage must enter the tank entirely. Remember that the movement range of the float is 28 degrees, and the action point is reached when the float is horizontal.

• Routine Cleaning: Regularly remove debris or scaling from the float and linkage rod to prevent jamming.

Tianjin ZINACA Intelligent Equipment Co., Ltd. specializes in manufacturing versatile level switches that bridge the gap between simple mechanics and smart industrial control. Whether you are dealing with concentrated acids, high-pressure steam, or food-grade liquids, our rod-and-float solutions provide the durability your facility demands.
