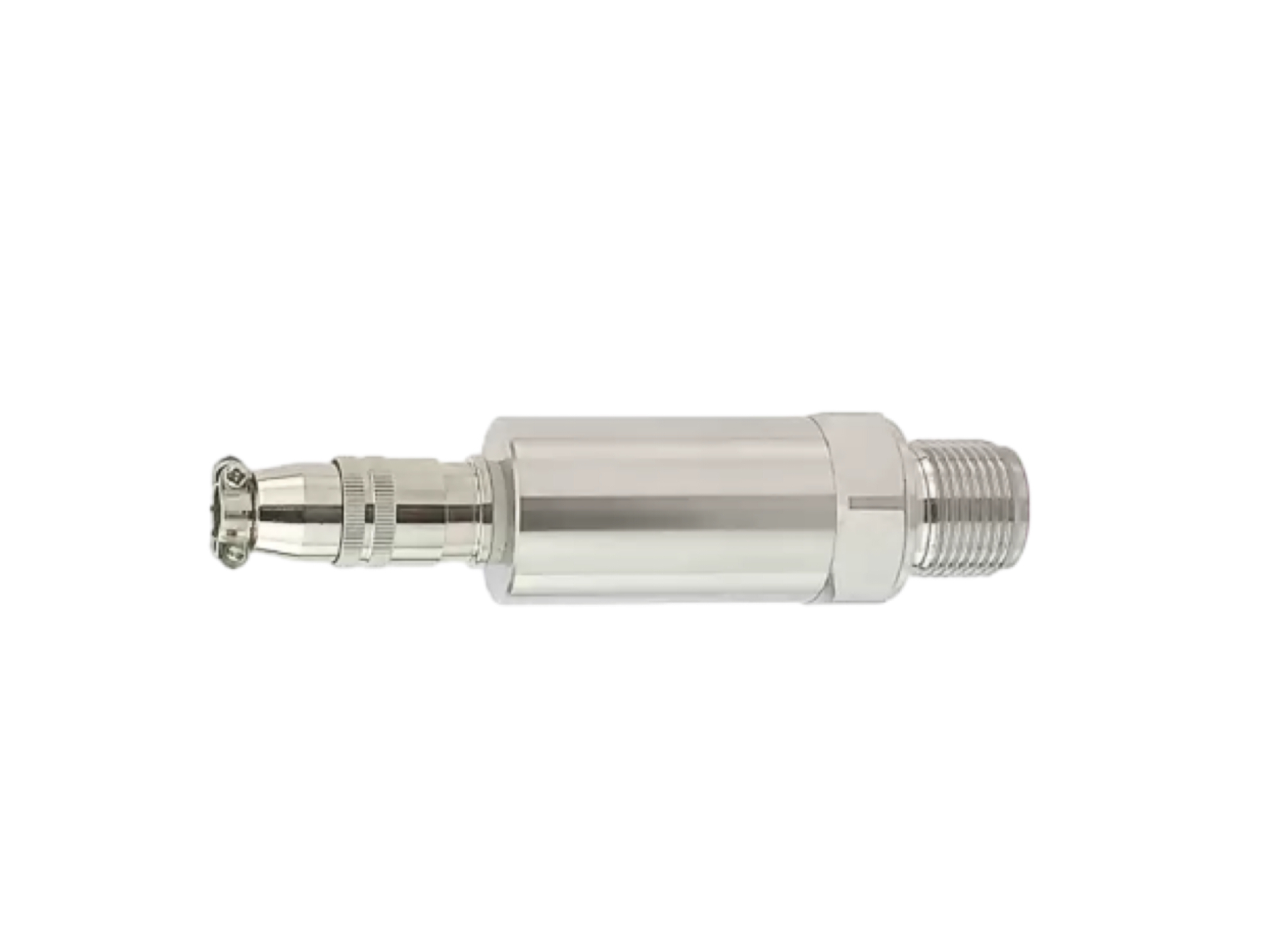

In the world of industrial automation, "compact" often translates to "limited space." As machinery becomes more integrated and smaller in scale, the Compact Pressure Transmitter(often referred to as a miniature or small-size transmitter) has become a vital tool. However, the performance of these sensors is heavily dependent on how they connect to the control system.

At ZINACA Instruments, we consistently find that for compact designs, the Aviation Plug (typically M12 or similar circular connectors) is the preferred choice over traditional junction boxes or direct cable leads. Below, we explore the technical reasons why this connection method is the industry favorite.

The Advantages of Aviation Plugs for Small-Scale Sensors

One. Superior Space Efficiency and Miniaturization. Traditional industrial transmitters often use large Hirschmann connectors or bulky terminal boxes. These components can be larger than the sensor body itself. An aviation plug, particularly the M12 or M8 series, offers a high-density connection in a tiny footprint. This allows the transmitter to be installed in tight manifolds, engine compartments, or complex hydraulic blocks where every millimeter counts.

Two. Plug-and-Play Convenience and Fast Maintenance Time is money in a production environment. When a sensor needs to be replaced or recalibrated, an aviation plug allows for "Plug-and-Play" operation.

Quick Replacement: Technicians can simply unscrew the connector and swap the sensor without touching the wiring in the control cabinet.

Reduced Wiring Errors: Since the cables are pre-wired and keyed, there is no risk of reversing the positive and negative poles during field installation, which is a common cause of sensor damage.

Three. Enhanced Protection and Durability (IP65/IP67). Despite their small size, aviation plugs are incredibly rugged. Most are designed with a threaded locking mechanism that provides excellent resistance to vibration and mechanical shock—critical in pumping stations or mobile machinery. When properly tightened, these connectors provide an IP65 or IP67 waterproof and dustproof rating, ensuring the internal electronics remain isolated from humidity and contaminants.

Four. Standardization and Versatility The M12 aviation plug is a global standard in industrial automation. By choosing this connection, you ensure that your ZINACA compact pressure transmitter is compatible with standardized sensor cables available worldwide. This simplifies spare parts management and allows for easy integration into existing PLC or DCS architectures.

Five. Aesthetic and Professional Finish For equipment manufacturers (OEMs), the appearance of the machine matters. An all-stainless steel compact transmitter paired with a precision-machined aviation plug gives the final product a professional, high-end look compared to messy cable glands or bulky plastic housings.

Applications for Aviation Plug Transmitters

Because of these benefits, compact transmitters with aviation plugs are widely used in:

Hydraulic and Pneumatic Systems: Monitoring oil and air pressure in mobile equipment.

Pumping Manifolds: Where multiple sensors are installed in a small area.

Laboratory Equipment: Requiring frequent setup changes and high precision.

Food and Beverage Packaging: Where small-diameter piping is common, and washdown protection is required.

ZINACA Instruments: Your Partner in Precision

ZINACA Instruments is a professional manufacturer of industrial pressure measurement devices. We specialize in producing all-stainless steel compact pressure transmitters that are not only durable but also highly accurate. Our sensors undergo rigorous testing to ensure stability and long-term reliability in challenging environments.

Custom OEM Services and Pricing

The price of a compact pressure transmitter depends on the specific pressure range, output signal (e.g., 4-20mA, RS485), and accuracy requirements. At ZINACA, we provide full OEM customization services:

Custom process threads (G, NPT, Metric).

Specialized electrical outputs.

Permanent laser engraving of your brand or technical data.

If you are looking for a reliable, small-scale pressure solution for your next project, contact ZINACA Instruments today. We can help you select the ideal configuration, including the perfect aviation plug setup for your specific working conditions.
